MAG Theatron SLIM-110

In-Wall home cinema subwoofer

The SLIM-110 is an intricately designed in-wall subwoofer, created for ease of integration into the most space-limited rooms. Its paper-thin construction and surprising sound performance are the perfect solutions for spaces demanding both sound excellence and a minimalist sound system visual imprint.



  • Components: 10″
  • Frequency range: 25 – 200 Hz
  • Max continuous SPL: 119,2 dB (at 50 Hz)
  • Power rating: 200 W

Being less than 10 cm deep, the SLIM-110 delivers a high-end experience in spaces where no other subwoofer can fit. It features innovative cooling and an in-cabinet airflow control design, as well as an adaptable mounting system, providing minimal installation or service efforts.

The SLIM-110 is built around a 10” woofer featuring a rigid dual-aluminum cone and long-throw rubber surround. The innovative internal design allows for the woofer’s depth to be remarkably low without any compromises on sound performance or reliability.

Reference Sound Levels for MAG Theatron Subwoofers:

115 dB — Professional-grade sound for an unparalleled audio experience
112 dB — A slightly lower but still considerable level, perfect for high-quality audio enjoyment
109 dB — An excellent level for most home entertainment setups, ensuring clear & enjoyable sound

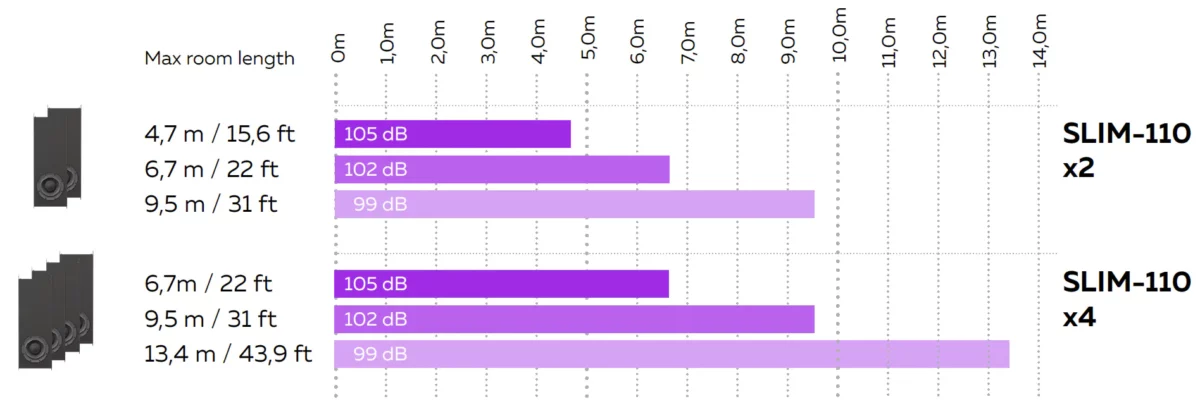

Room length chart:MAG Theatron SLIM-110 – room length chart

Frequency response (±3 dB), Hz33 – 200
Frequency range (-10 dB), Hz25 – 300
Max continuous SPL, dBSee CTA-2010 table below
Sensitivity (1W/1m, half-space), dB86
Low-frequency woofer10-inch (3-inch voice coil, aluminum cone, neodymium magnet)
Nominal impedance, Ohm4
Power rating*, W200
ConnectorsPhoenix
Dimension (W x H x D), mm355 x 955 х 98 (355 x 1025 x 98 – with corners)
Net weight, kg12,6

* - 2-hour power test, IEC filtered noise, 6 dB crest factor

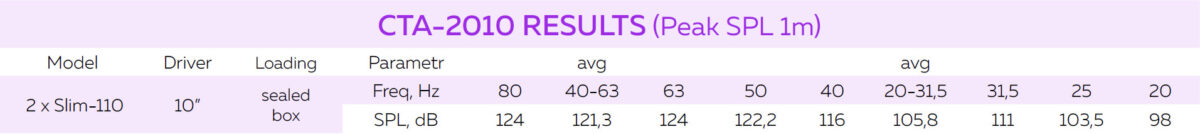

SLIM-110 CTA-2010 RESULTS
