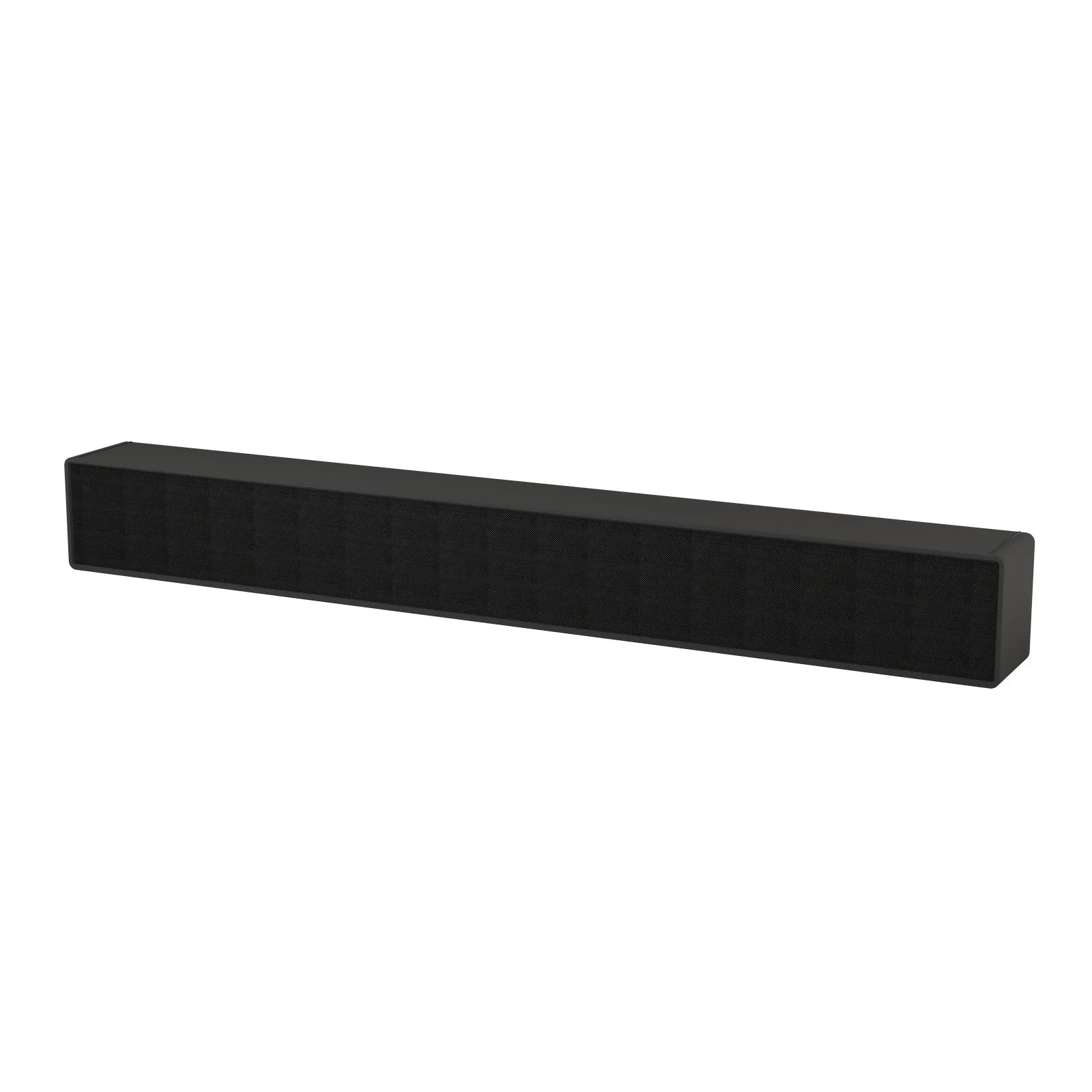

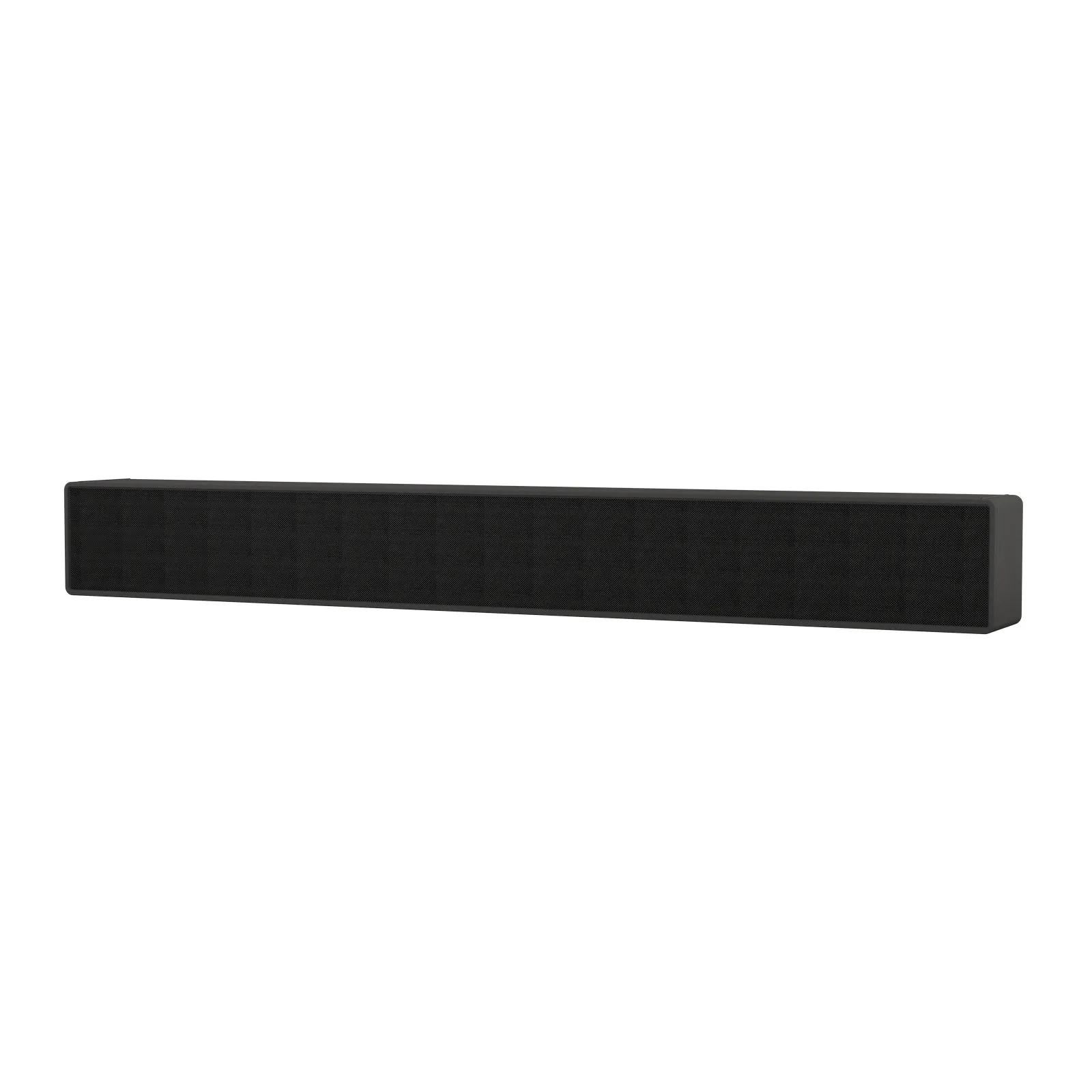

MAG Theatron UNIBAR

LED ready slim screen soundbar (Preliminary)

The UNIBAR is a top-of-the-line, 3-way slim main screen soundbar, featuring best-in-class drivers with TeXtreme® technology and 3.3” Air Motion Transformer Tweeter. It’s designed for performance with direct-view LED screens.

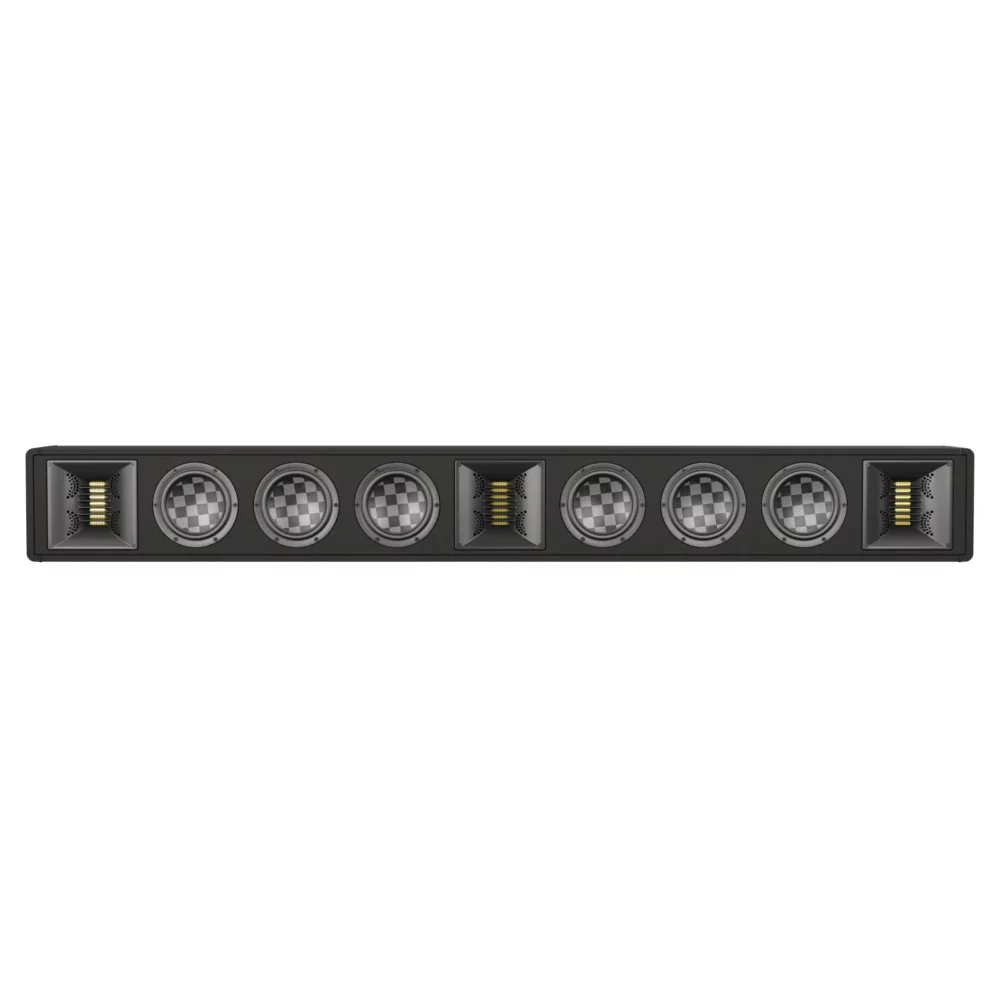

Components: 2 × 6.5″/ 4 × 2″/ 3.3” (AMT) — per channel (х3)
Frequency range: 75 – 24 000 Hz
Max continuous SPL: 112 dB — per channel (х3)
Power rating: 150 W — per channel (х3)

Overview

Technical Data

Downloads

Accessories

Applications

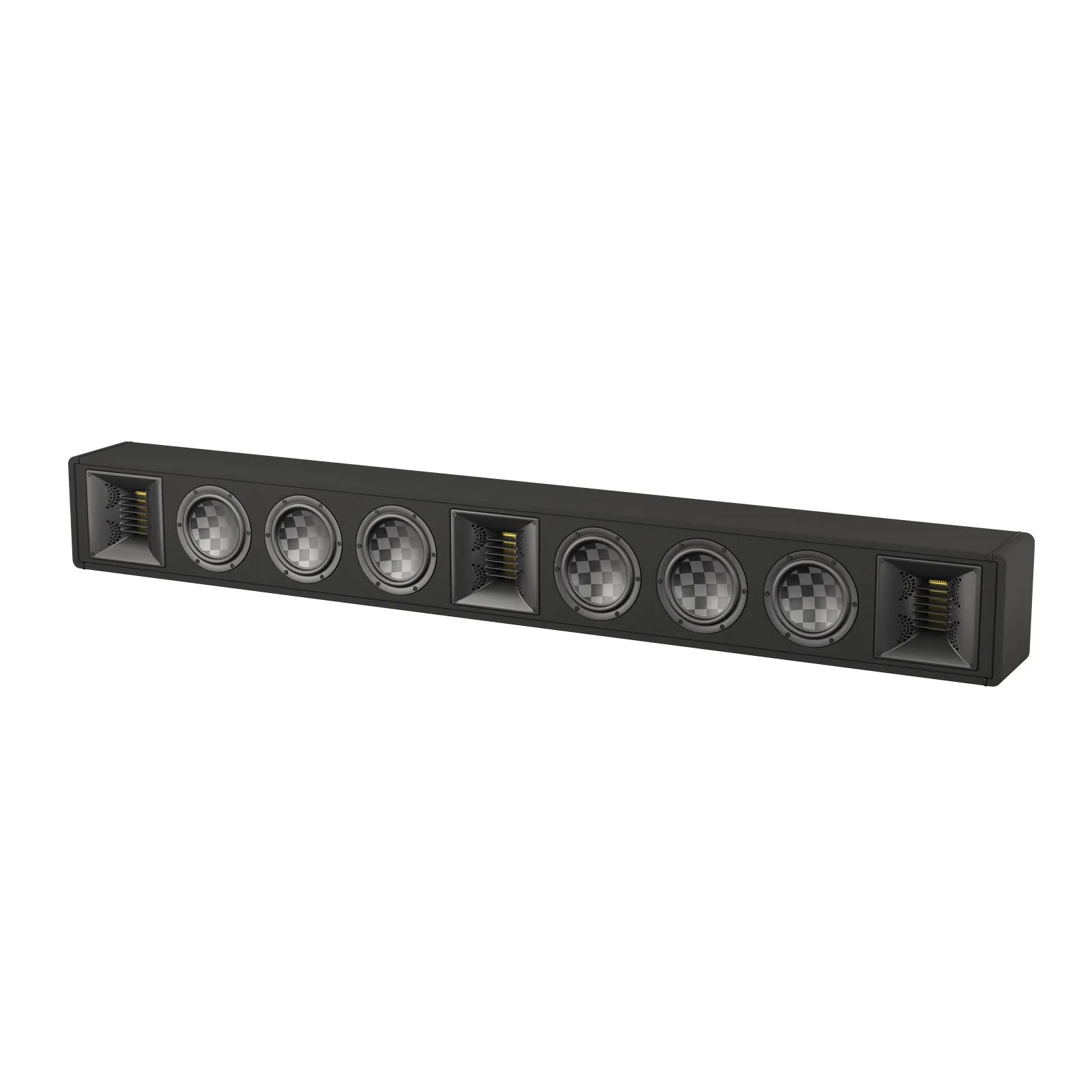

The slim and elegant UNIBAR from MAG Theatron is a premium sound solution that combines all three front cinema channels — Left, Center, and Right — in a single enclosure. Internally divided into three isolated chambers, it delivers the full-scale performance of a traditional screen speaker setup while maintaining a compact form.

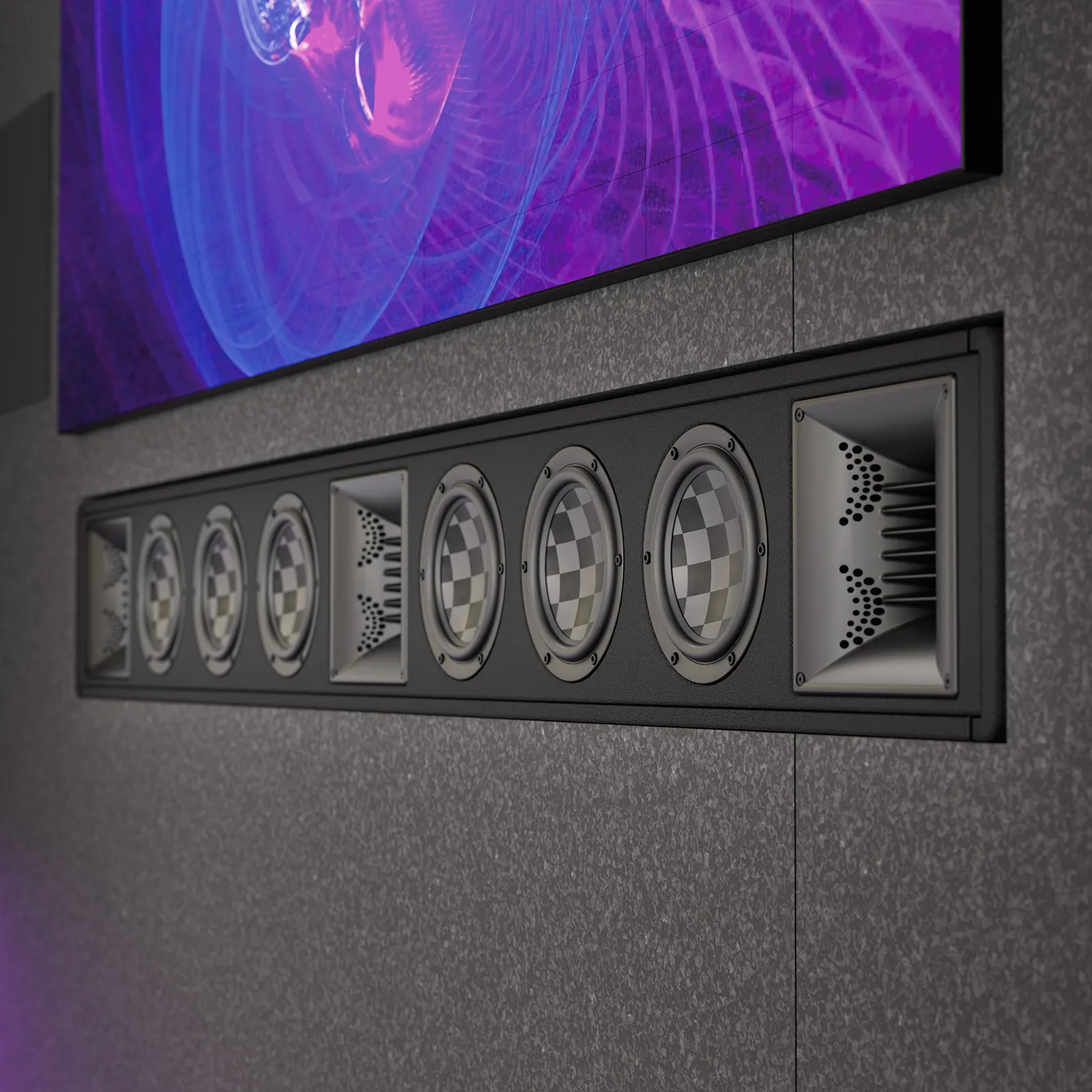

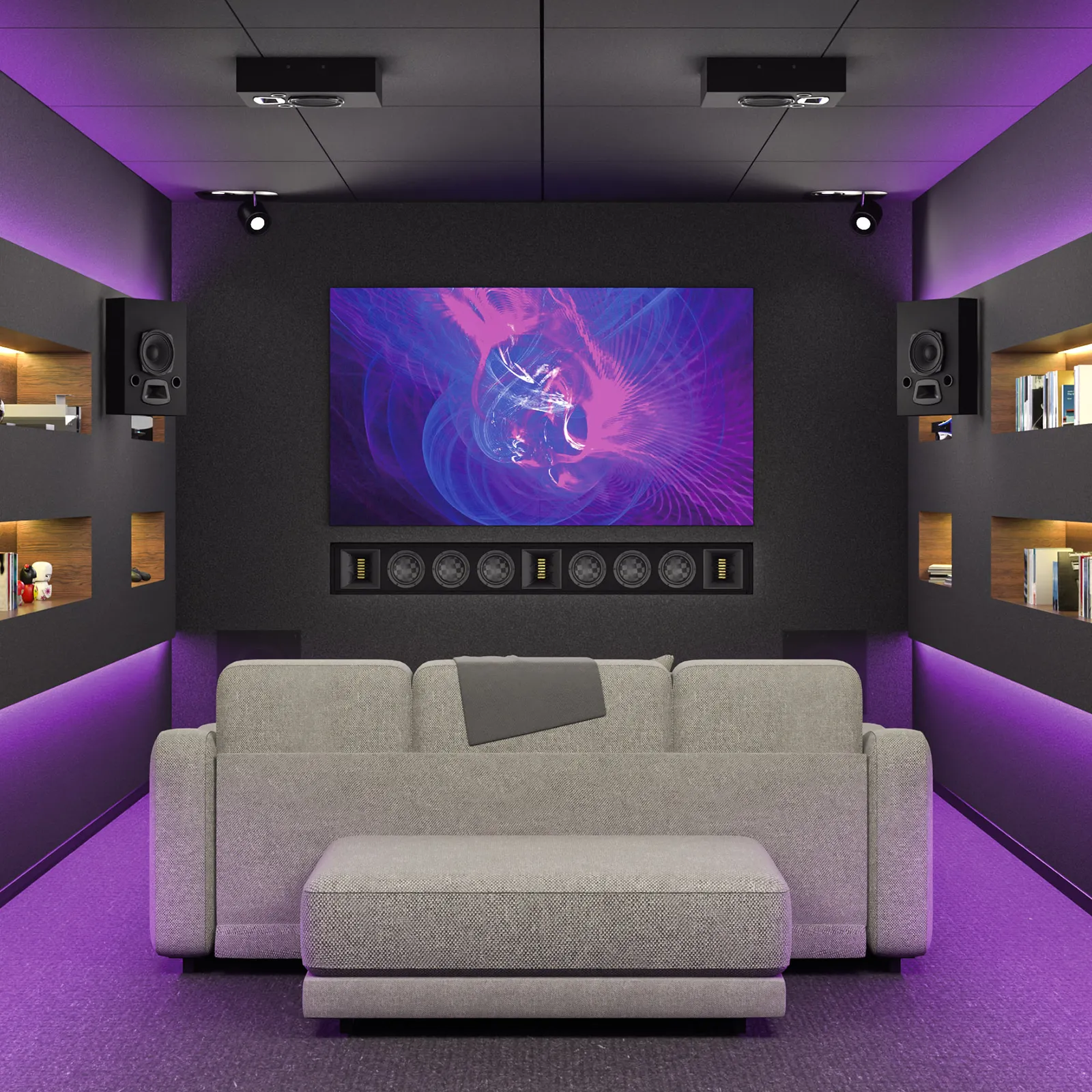

Thanks to its narrow profile, UNIBAR is perfectly suited for direct-view LED screens and can be easily installed above, below, or behind an acoustically transparent projection screen. This makes it a versatile choice for both modern LED-based cinemas and classic projection environments.

If you seek more than just superior sound, we will surprise you with a truly exclusive option: a custom-sized UNIBAR crafted to match your screen, up to 200” wide, with the only limit being that it cannot be smaller than the base model.

Its sophisticated 3-way architecture employs only the finest components, including ultra-low-resonance TeXtreme® woofer cones, ensuring audio reproduction of exceptional clarity and depth.

TeXtreme® – carbon fiber composite

The groundbreaking TeXtreme technology redefines the standards of speaker design, delivering an auditory experience that transcends the ordinary. TeXtreme’s advanced carbon fiber material, renowned for its ultra-lightweight yet incredibly rigid properties, minimizes distortion and enhances sound precision, ensuring that every note, every whisper, and every crescendo is captured with pristine accuracy.

Air Motion Transformer Redefined

MAG Theatron FALCON-46 rotate MF & HF section

The Falcon 46’s revolutionary MHF section is set to redefine speech range reproduction standards. Featuring four low-distortion 2” midrange drivers and an innovative AMT high-frequency driver, seamlessly integrated into a single, cohesive unit, this design guarantees flawless coupling and impeccable phase coherence.

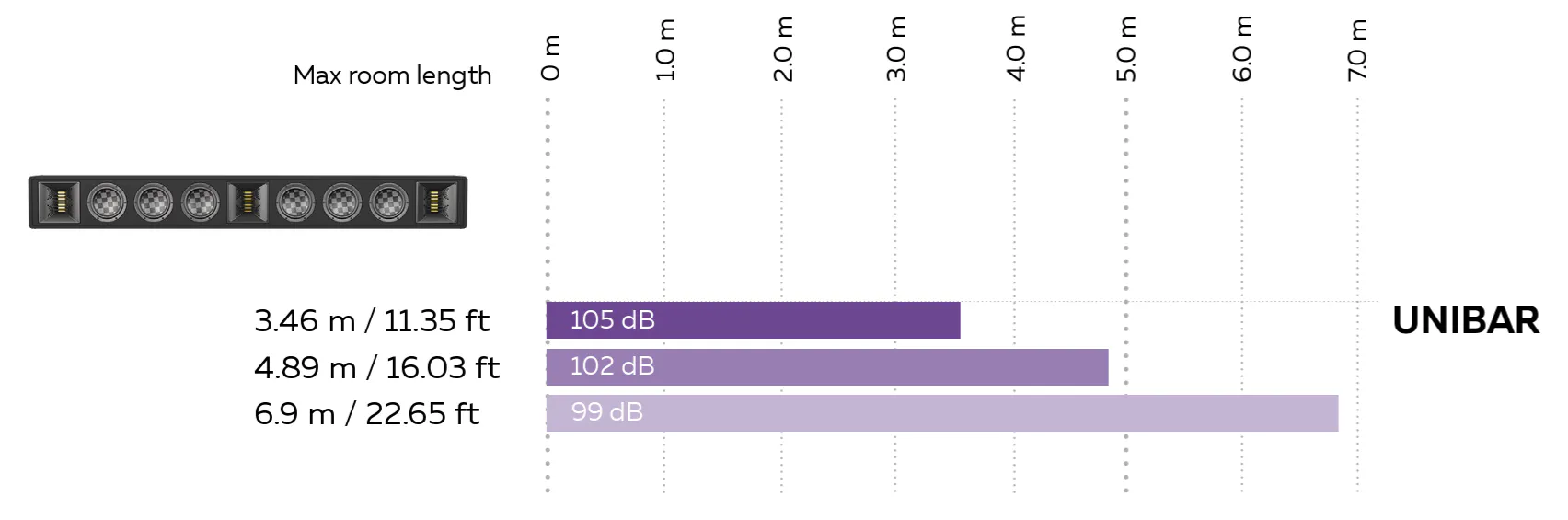

Reference Sound Levels for MAG Theatron Speakers:

105 dB — Professional-grade sound for an unparalleled audio experience
102 dB — A slightly lower but still considerable level, perfect for high-quality audio enjoyment
99 dB — An excellent level for most home entertainment setups, ensuring clear & enjoyable sound

Room length chart:


Frequency response (±3 dB), Hz*	80 – 21 000
Frequency range (–10 dB), Hz*	70 – 24 000
Max continuous SPL, dB*	112
Sensitivity (1W/1m, half-space), dB*	90.5
High-frequency driver*	3.3” Air Motion Transformer
Mid-range driver*	4 × 2-inch, (0.75-inch voice coil) cone
Low-frequency woofer*	2 × 6.5-inch (1.4-inch v.c.) TeXtreme cone
Coverage*	90° H × 40° V
Nominal impedance, Ohm*	8
Power rating, W*	150
Mounting	Slim wall mounting depth 0.5” 2 × VESA 100 × 100

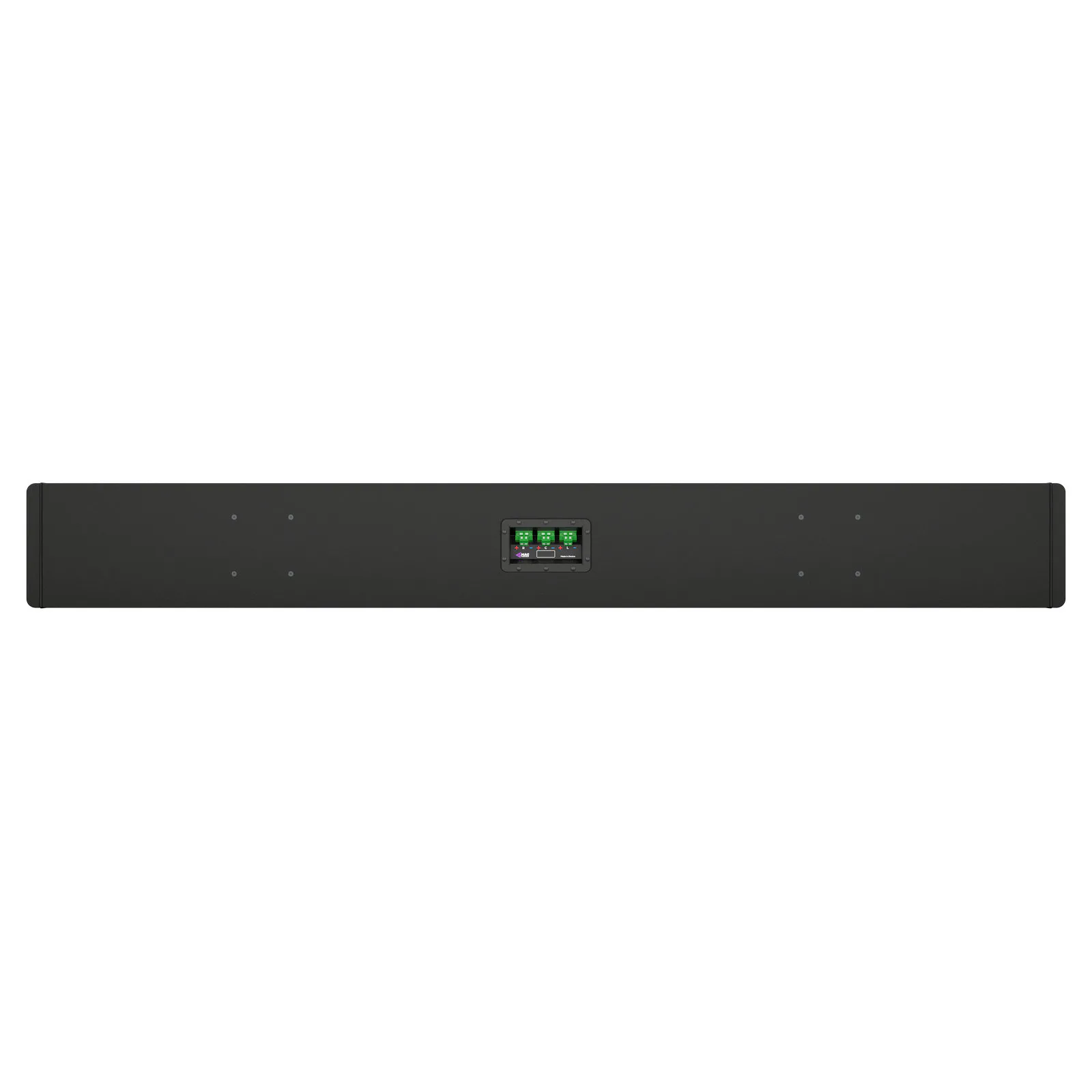

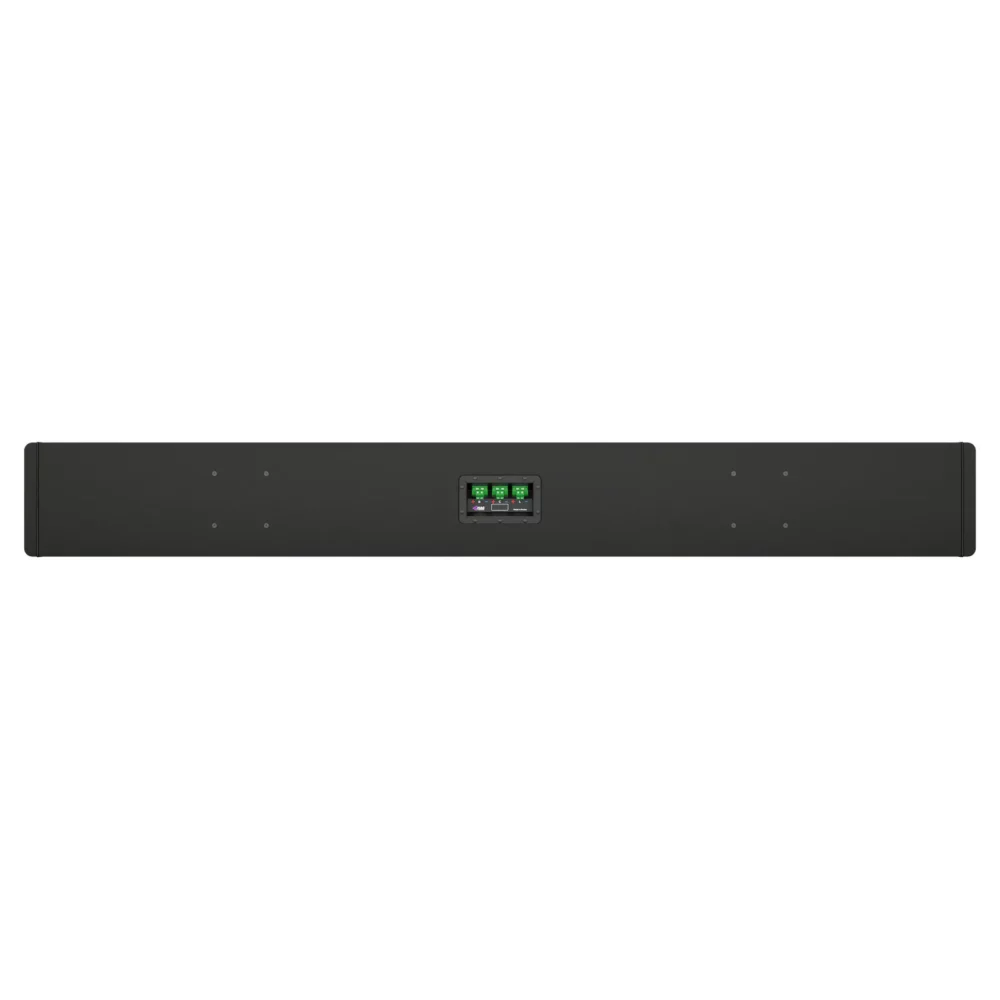

Connectors	Phoenix terminal

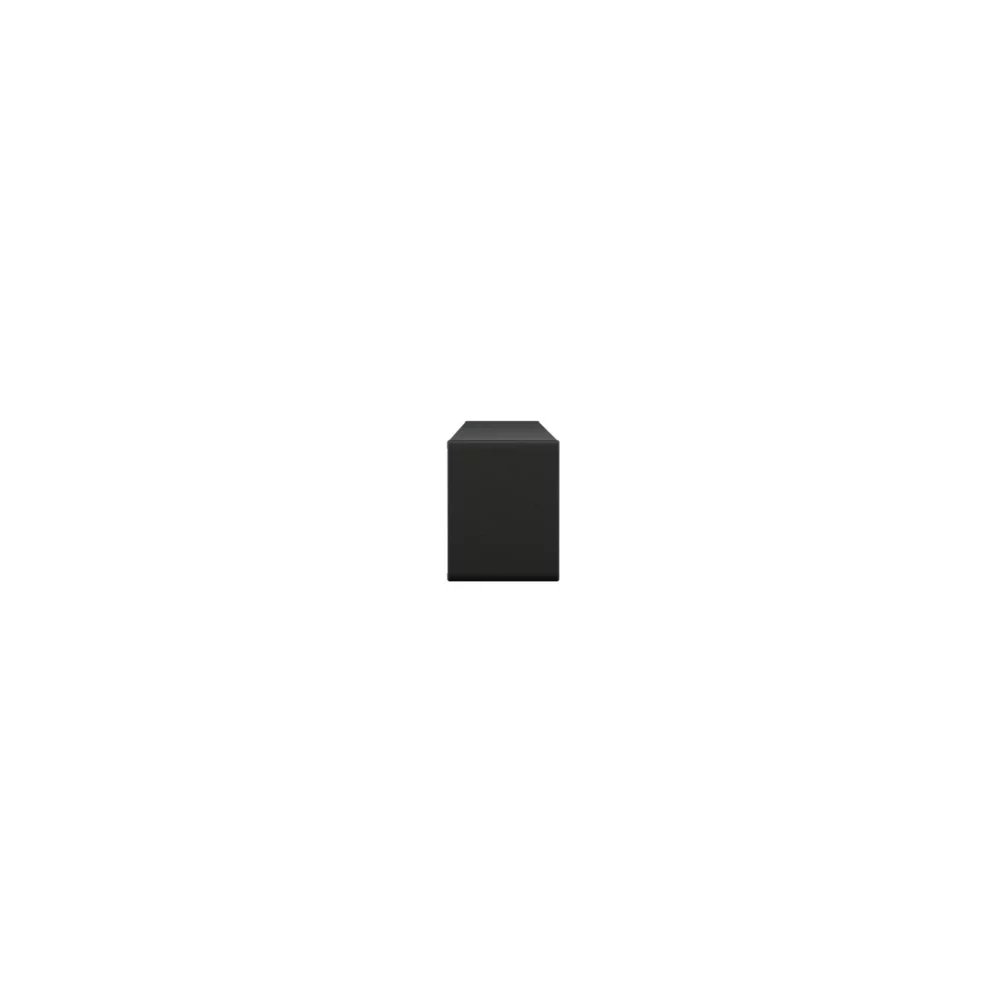

Dimension (W × H × D), mm / inches	1 834 × 220 × 187 / 72.20” × 8.66” × 7.01”
Net weight, kg / lbs	30 kg / 66.1 lbs

*All audio parameters are specified per channel (×3)

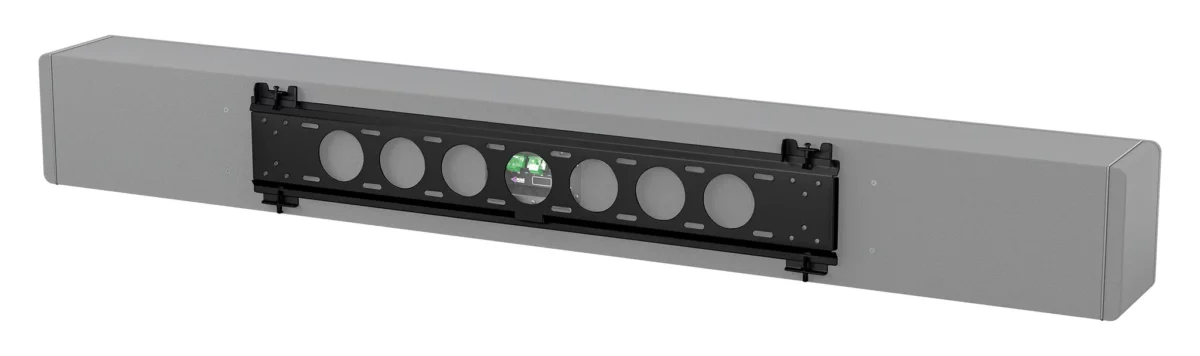

UNIBAR Bracket

UNIBAR Bracket is a slim, fixed wall-mount solution designed to position the UNIBAR speaker just 13 mm from the wall. Crafted from high-quality steel with a durable powder-coated finish, it combines strength with a discreet, thin profile.
