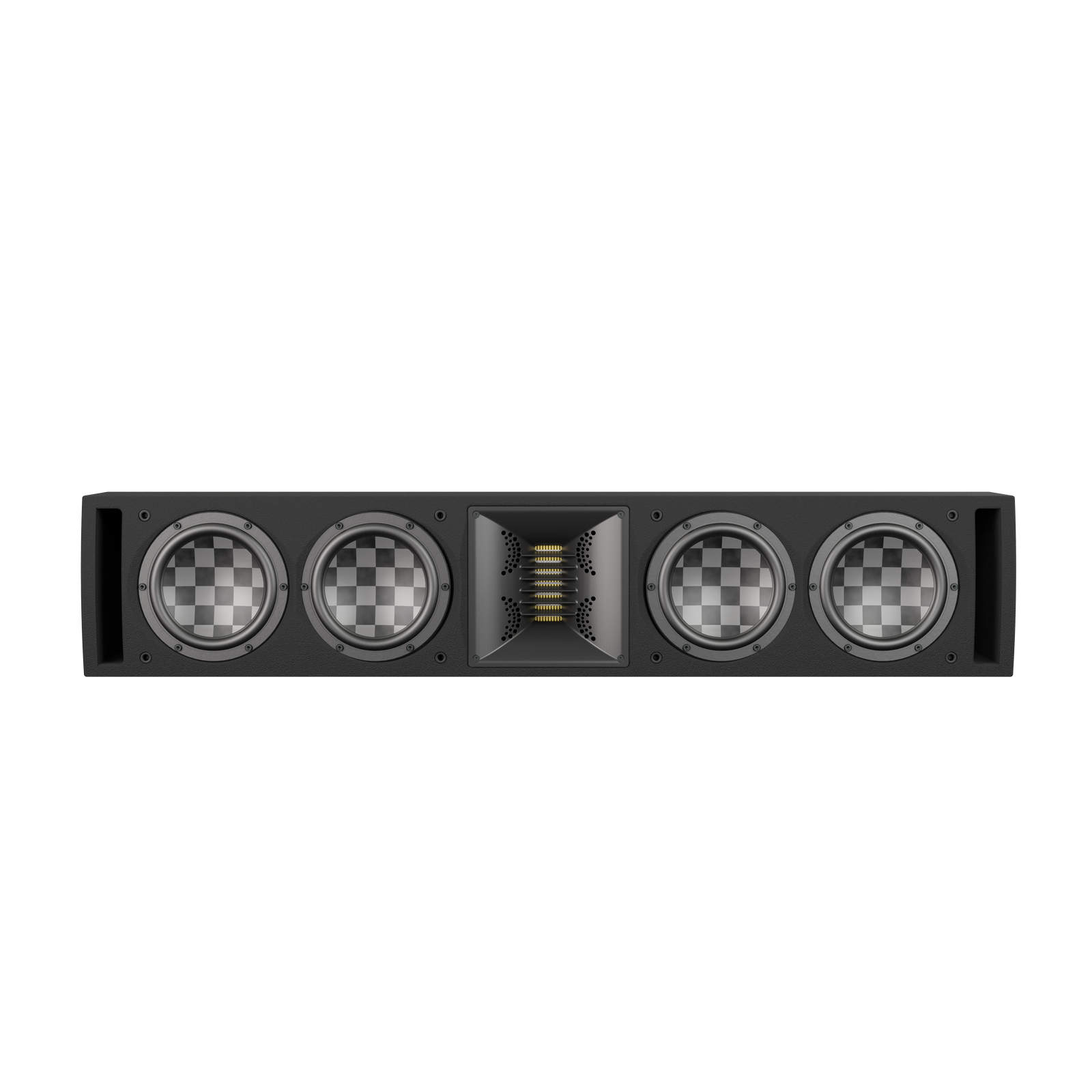

MAG Theatron FALCON 46

LED ready slim screen speaker

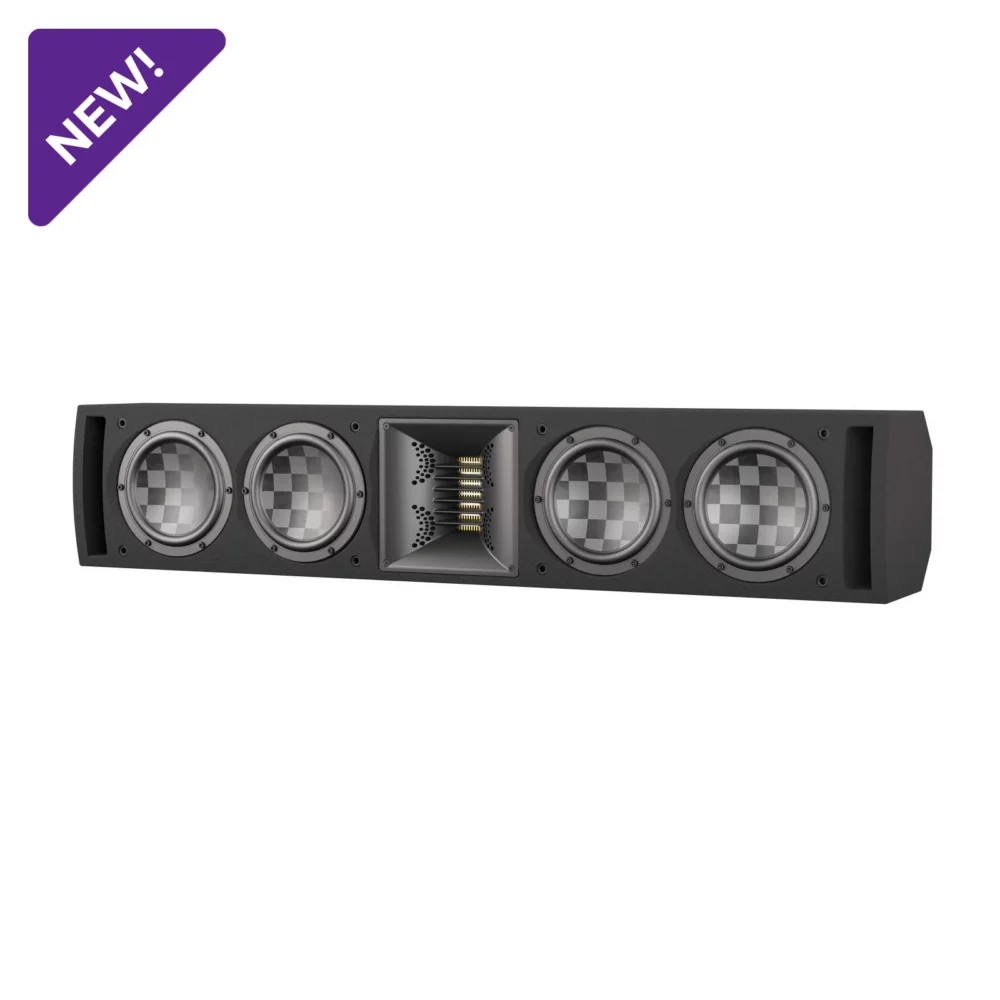

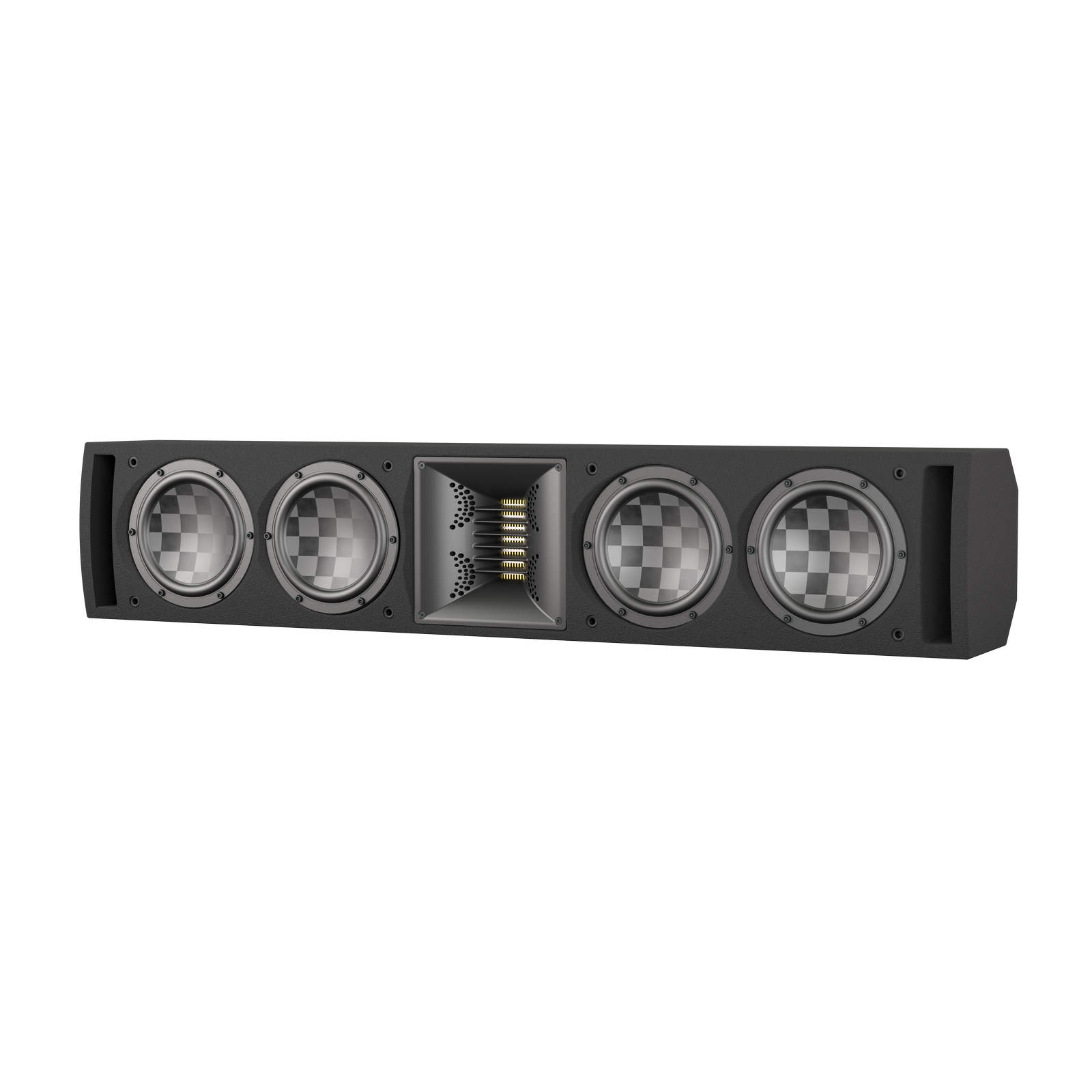

The FALCON 46 is a top-of-the-line, 3-way slim main screen speaker, featuring best-in-class drivers with TeXtreme® technology. It’s designed for performance as both a behind-the-screen speaker and for direct-view LED screens.



  • Components: 4 x 6,5″/4 x 2″/4 x 1″
  • Frequency range: 45 – 20000 Hz
  • Max continuous SPL: 117 dB
  • Power rating: 300 W
Overview
Technical Data
Downloads
Accessories
Applications

We introducing the FALCON 46: a pinnacle of home entertainment sophistication, ushering in a new era of immersive experiences that rival the brilliance of high-contrast direct-view LED screens. Its cutting-edge 3-way design incorporates the finest components available, featuring ultra-low resonant TeXtreme® woofer cones for unparalleled audio quality.

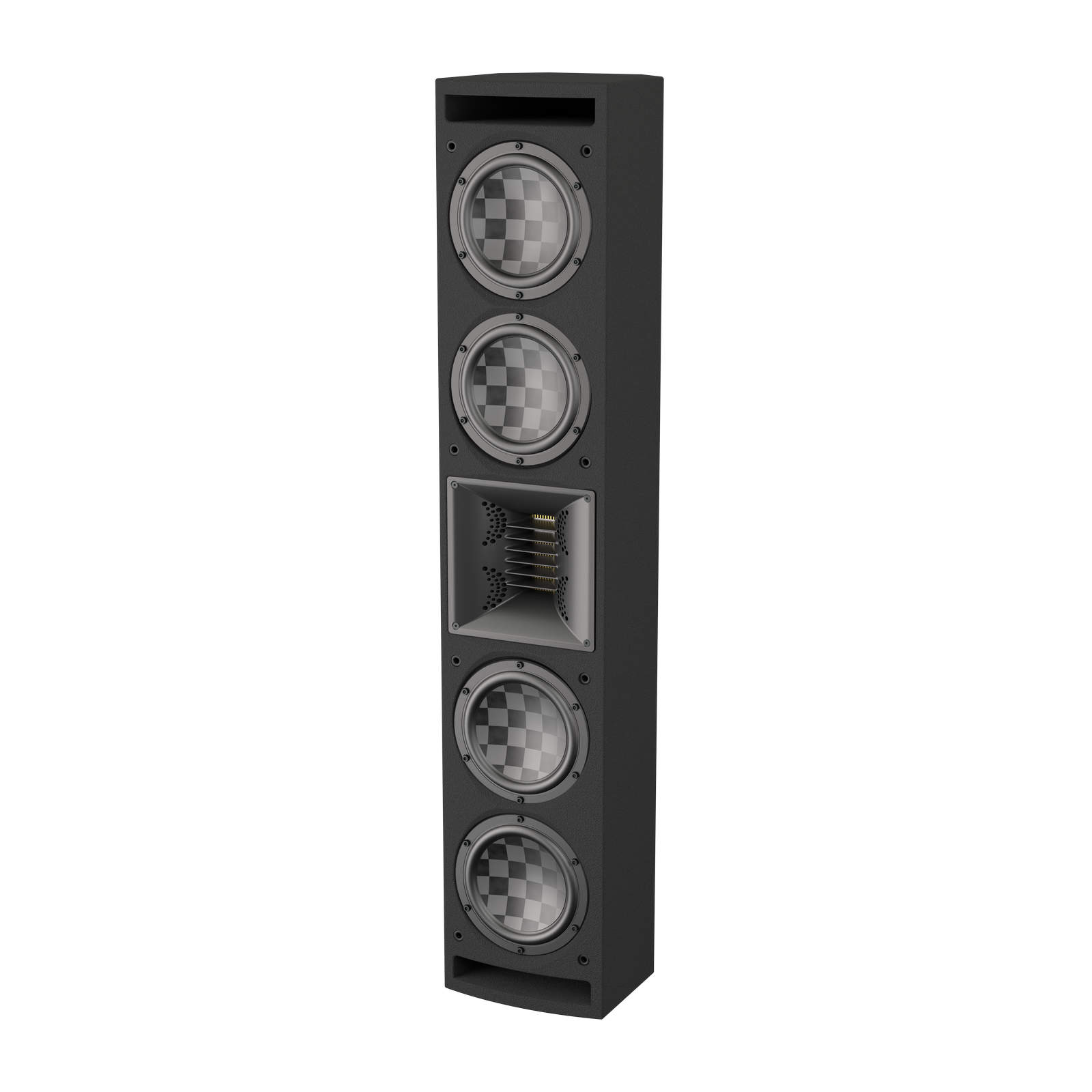

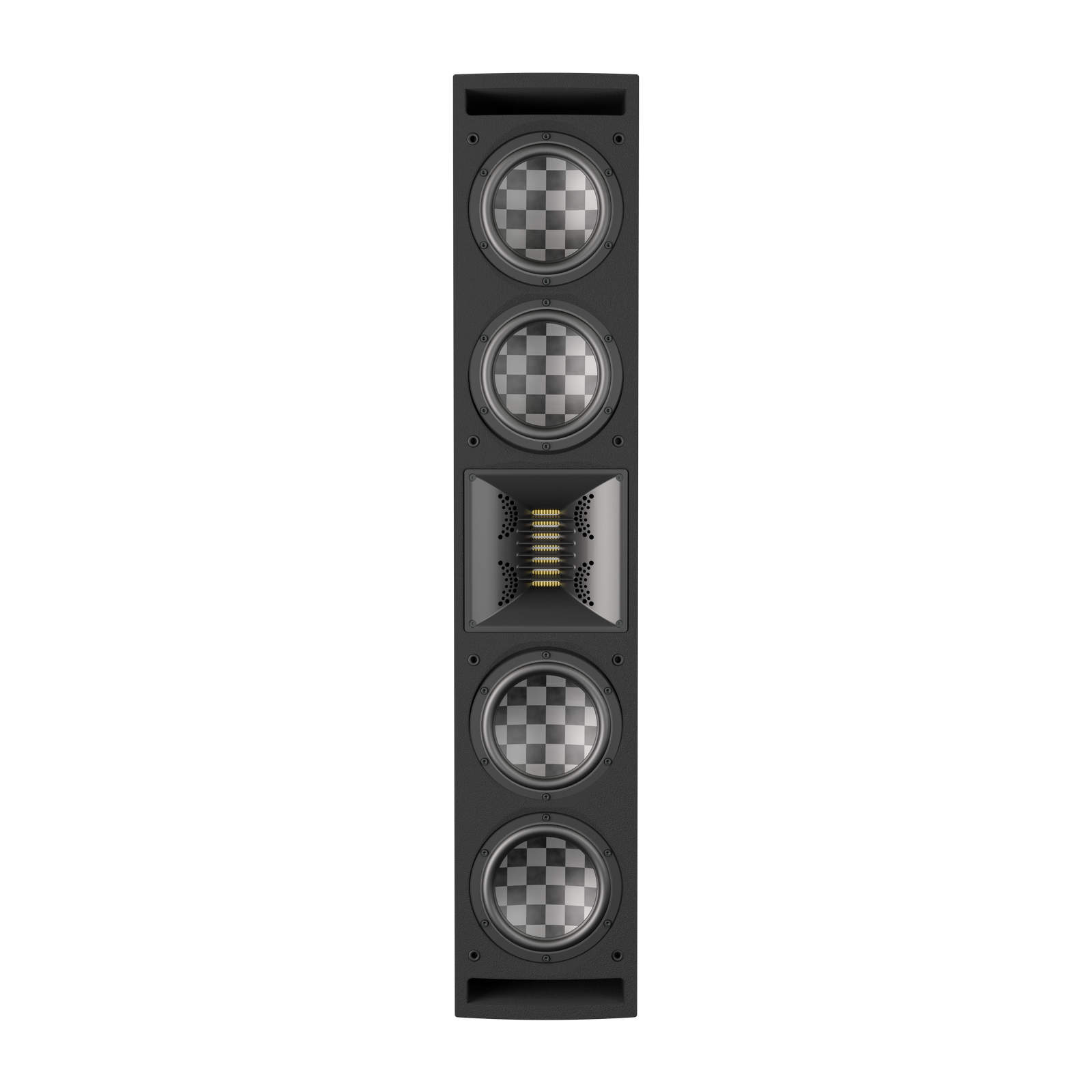

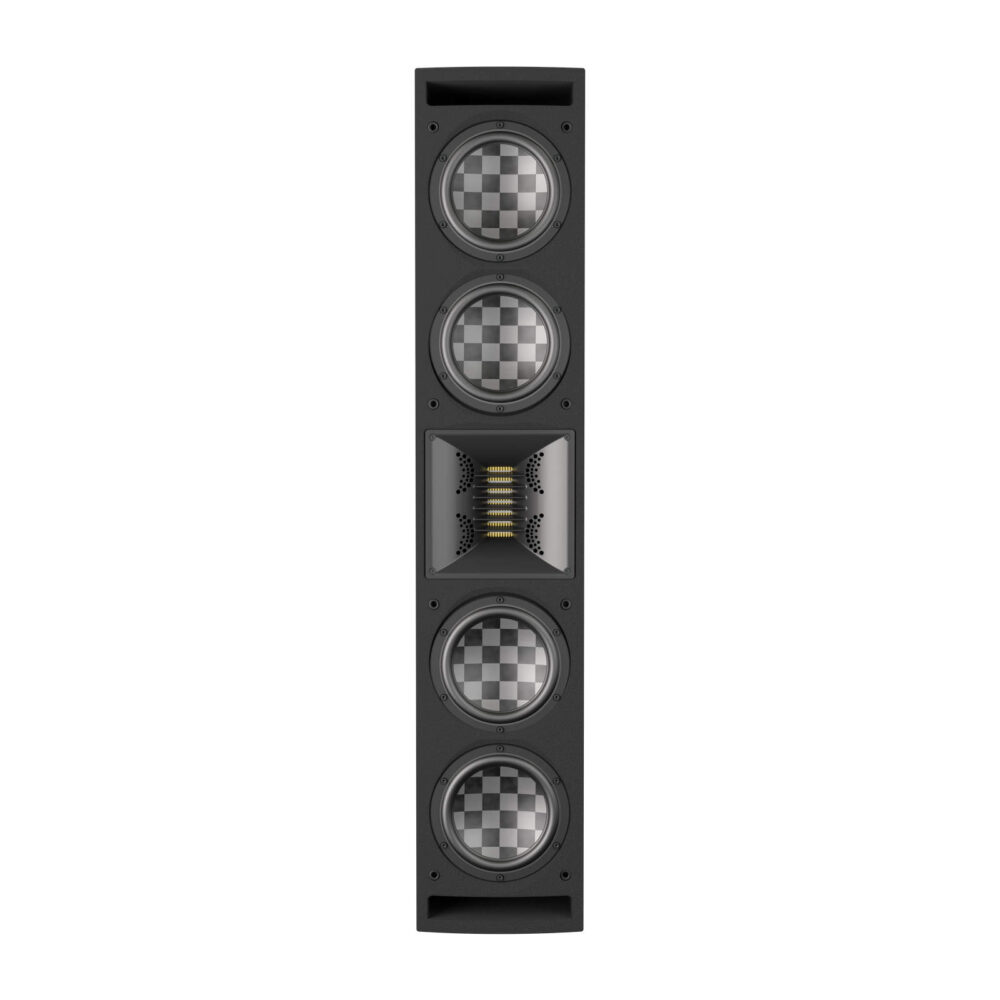

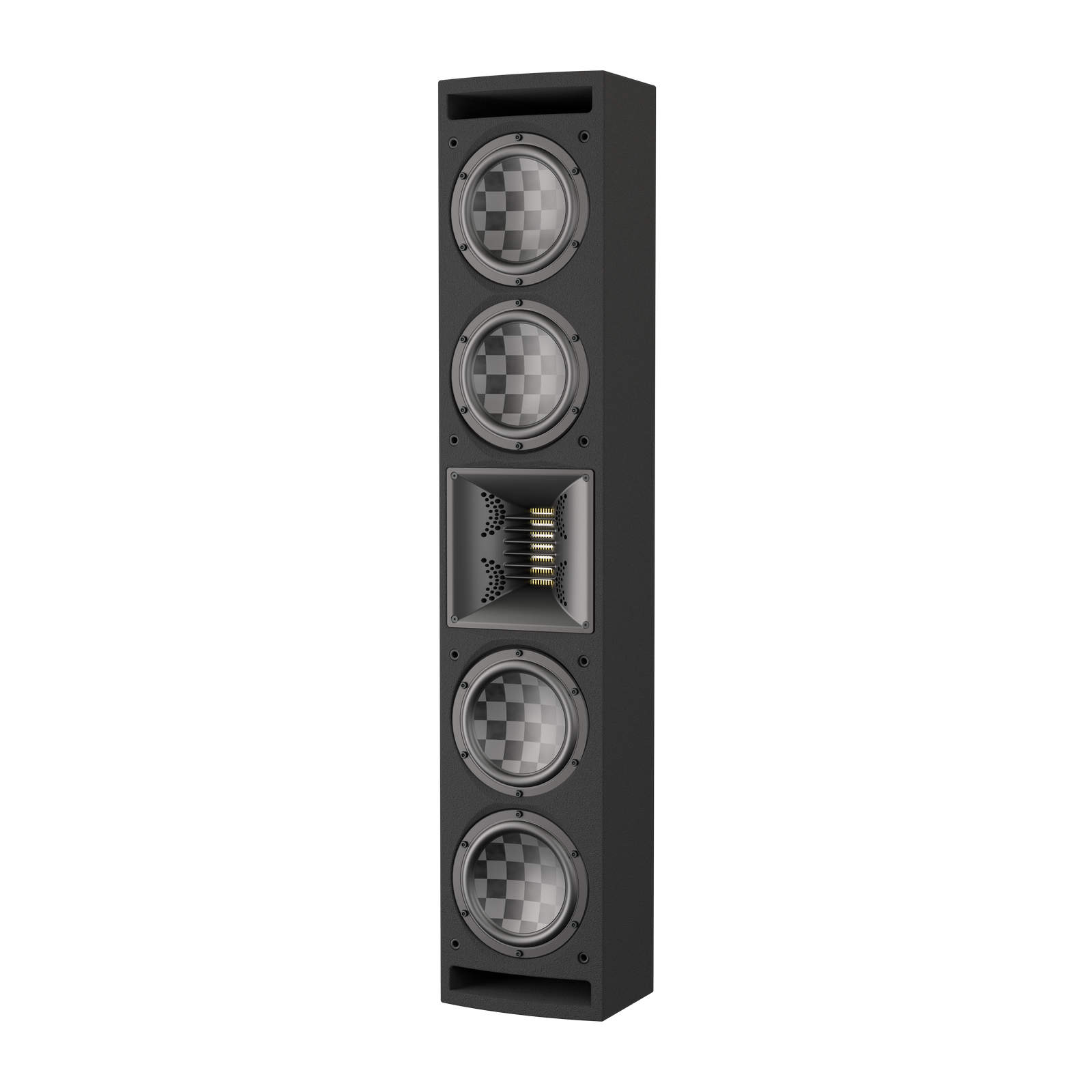

The FALCON 46’s compact form ensures seamless integration into the most confined spaces, while its versatile vertical and horizontal configurations make it ideal for placement above or beside your screen.

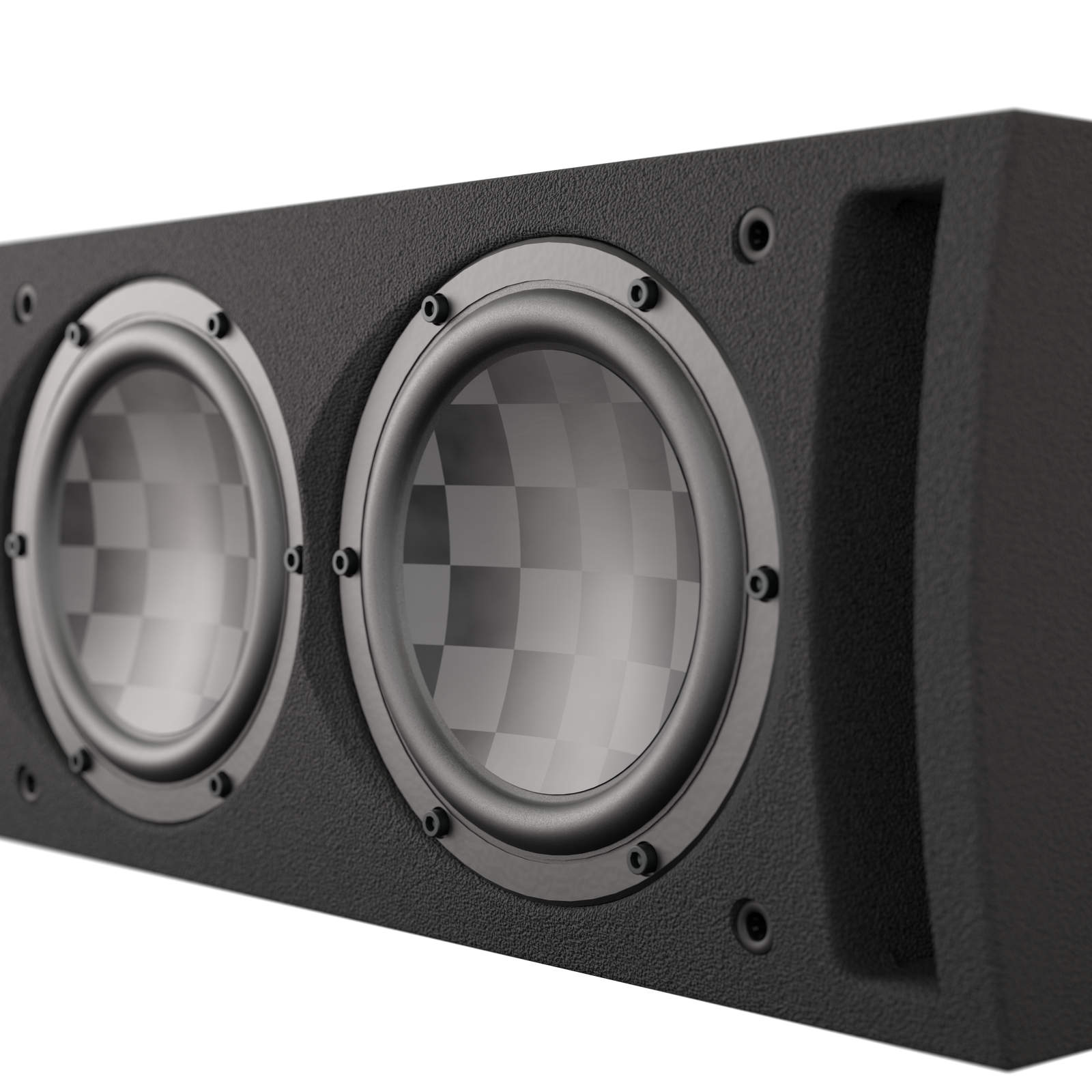

TeXtreme® – carbon fiber composite

The groundbreaking TeXtreme technology redefines the standards of speaker design, delivering an auditory experience that transcends the ordinary. TeXtreme’s advanced carbon fiber material, renowned for its ultralightweight yet incredibly rigid properties, minimizes distortion and enhances sound precision, ensuring that every note, every whisper, and every crescendo is captured with pristine accuracy.

Frequency response (±3 dB), Hz50 – 18000
Frequency range (-10 dB), Hz45 – 20000

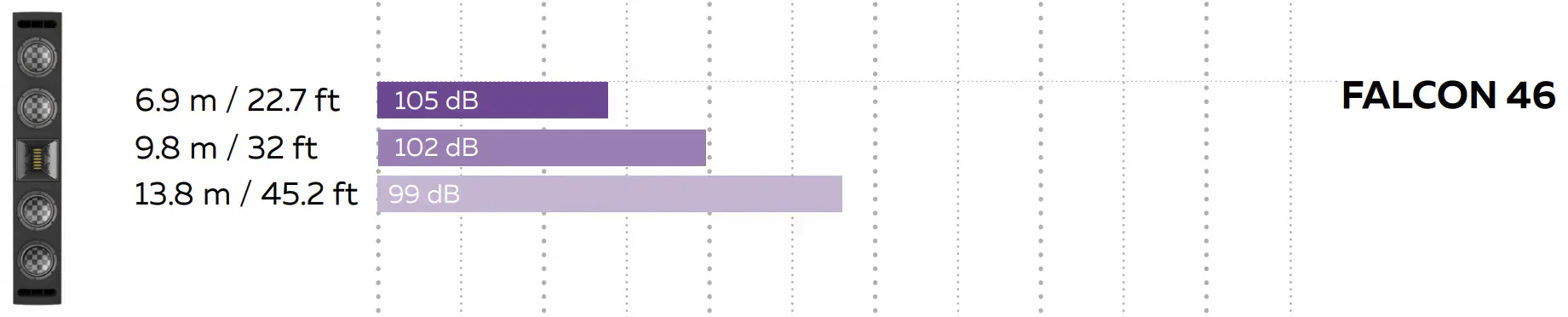

Max continuous SPL, dB117
Sensitivity (1W/1m, half-space), dB93,5

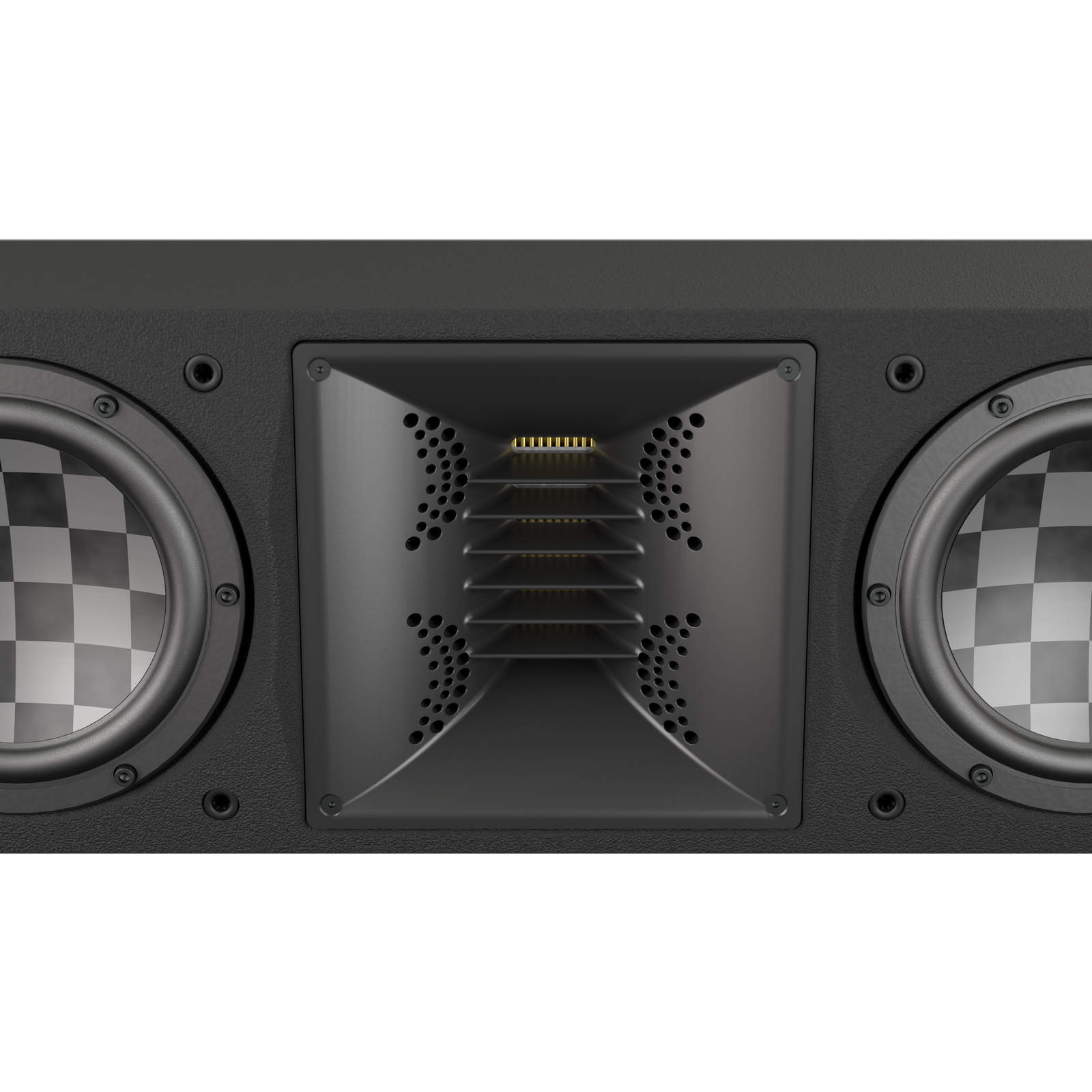

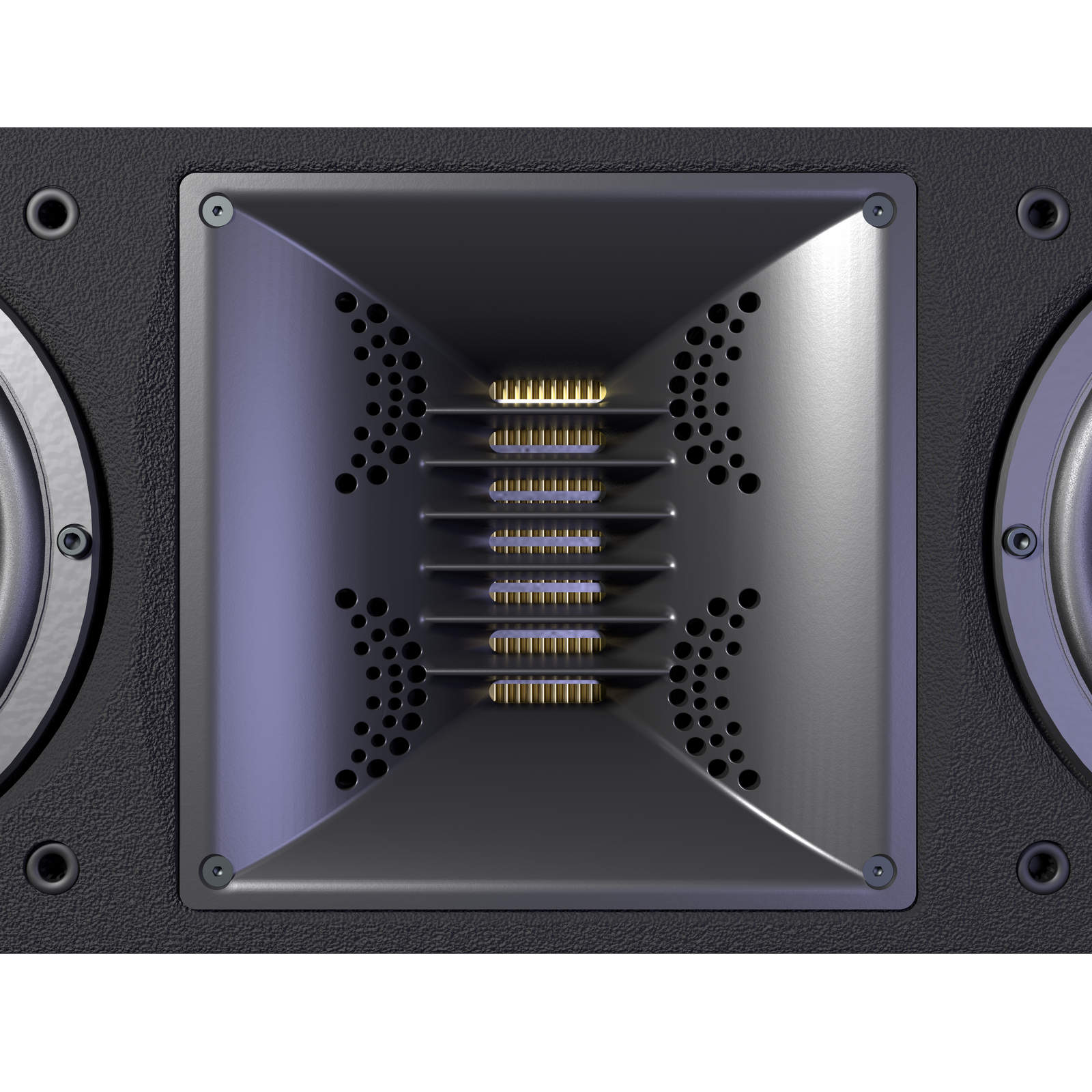

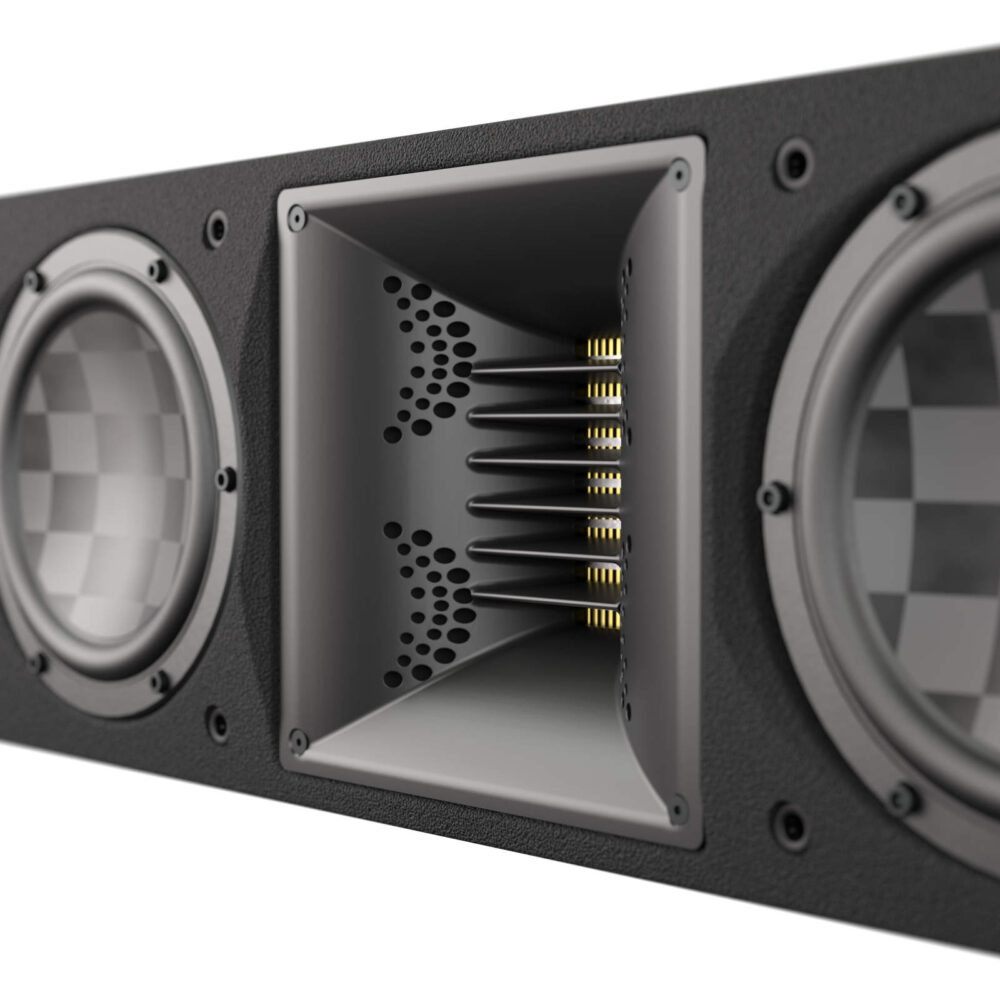

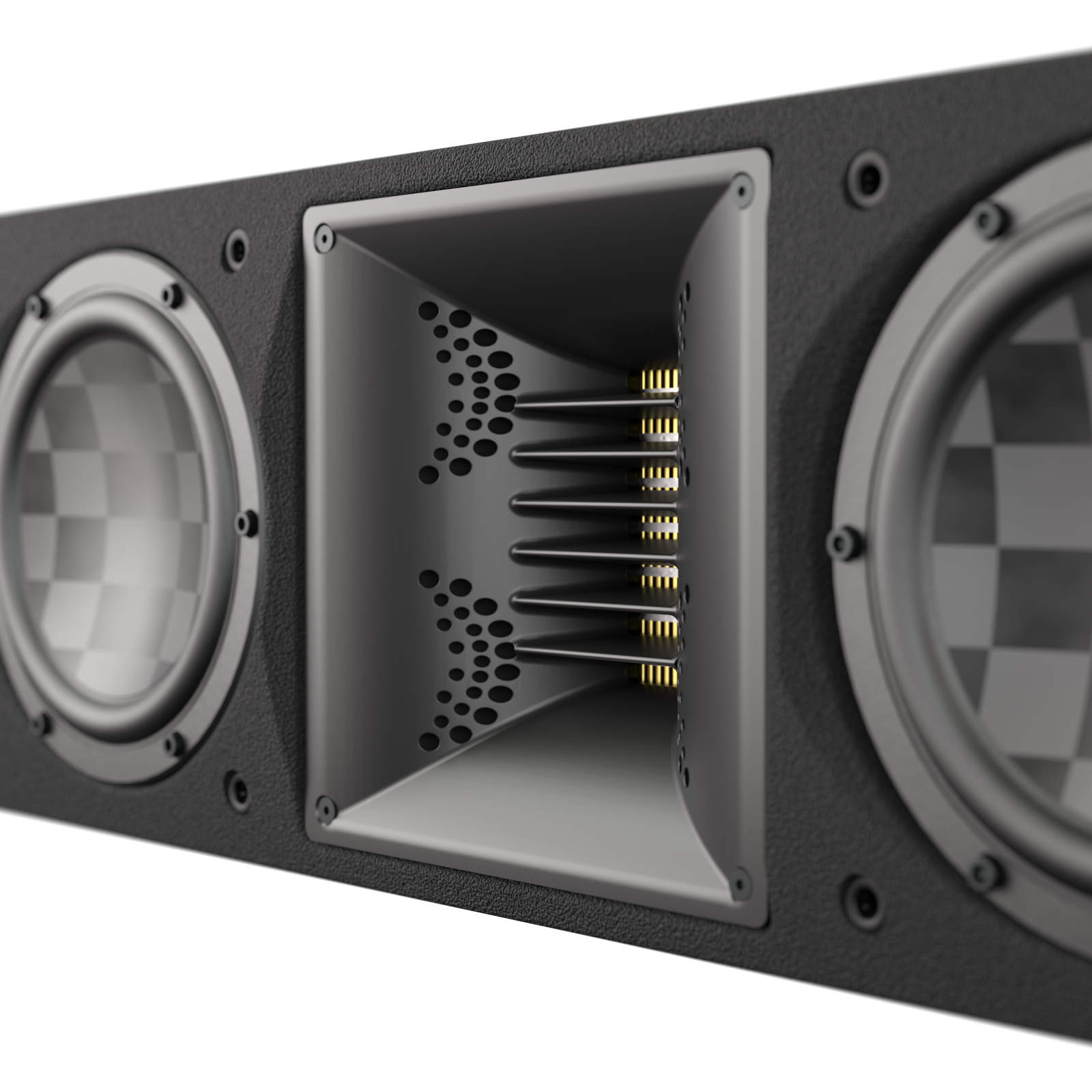

High-frequency driver4 х 1-inch (0,75-inch voice coil) dome tweeter
Mid-range driver4 x 2-inch, (0,75-inch voice coil) cone

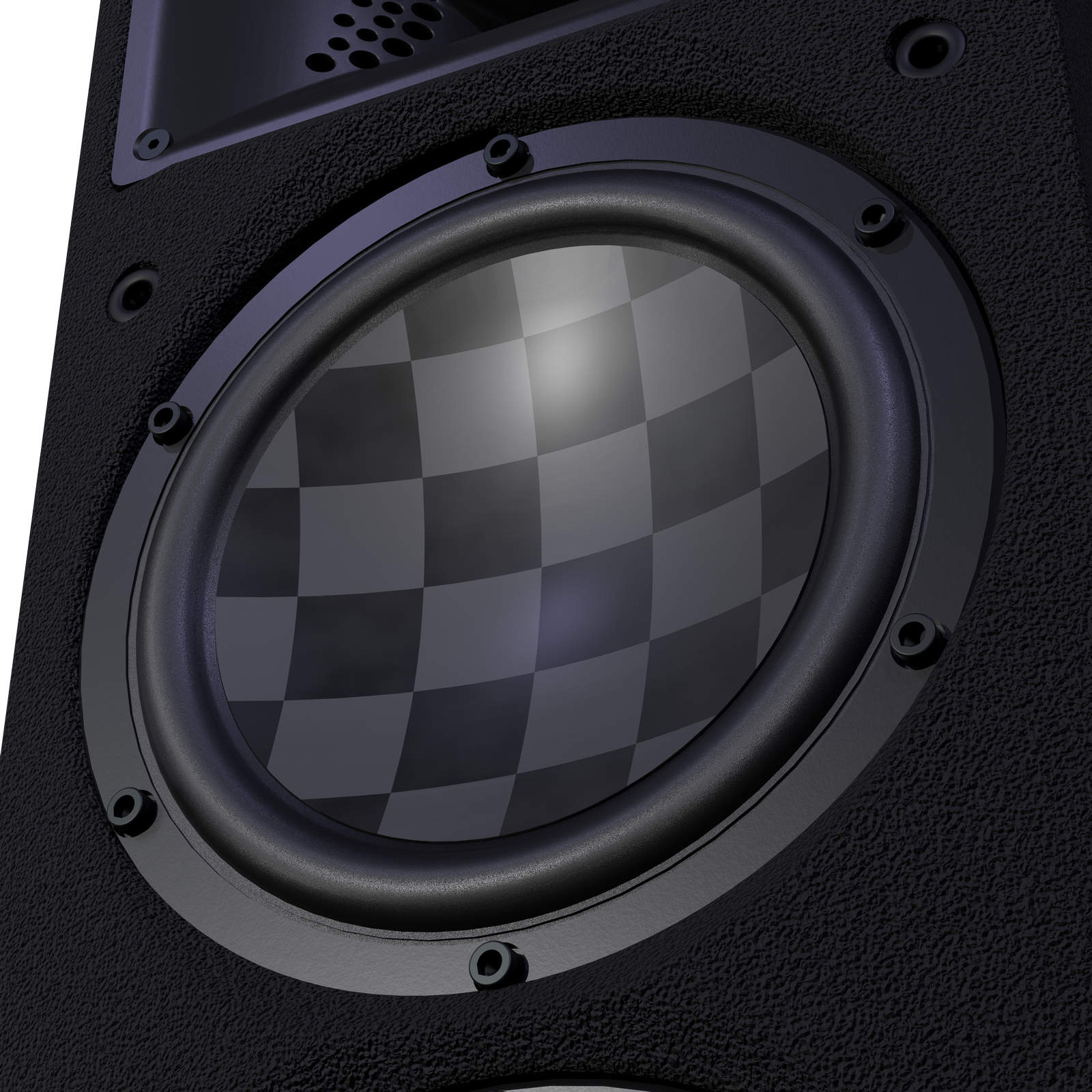

Low-frequency woofer4 x 6,5-inch (1,4-inch voice coil) TeXtreme cone

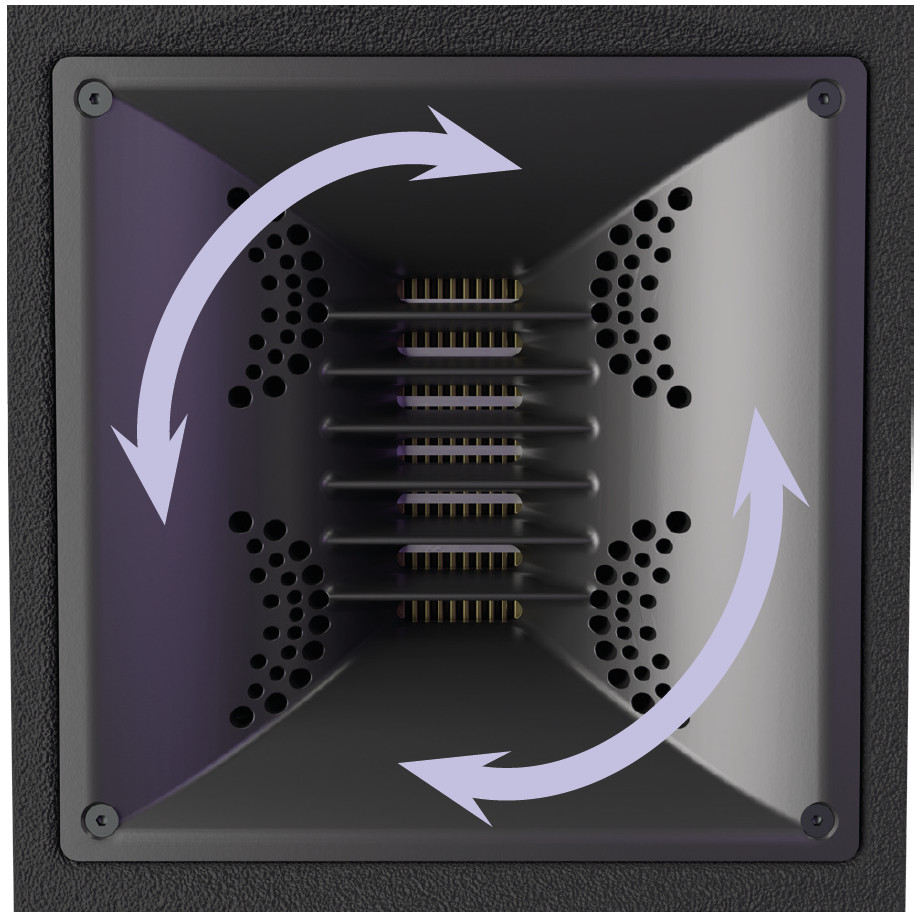

Coverage90° H x 40° V rotatable coverage pattern
Nominal impedance, Ohm4
Power rating, W300

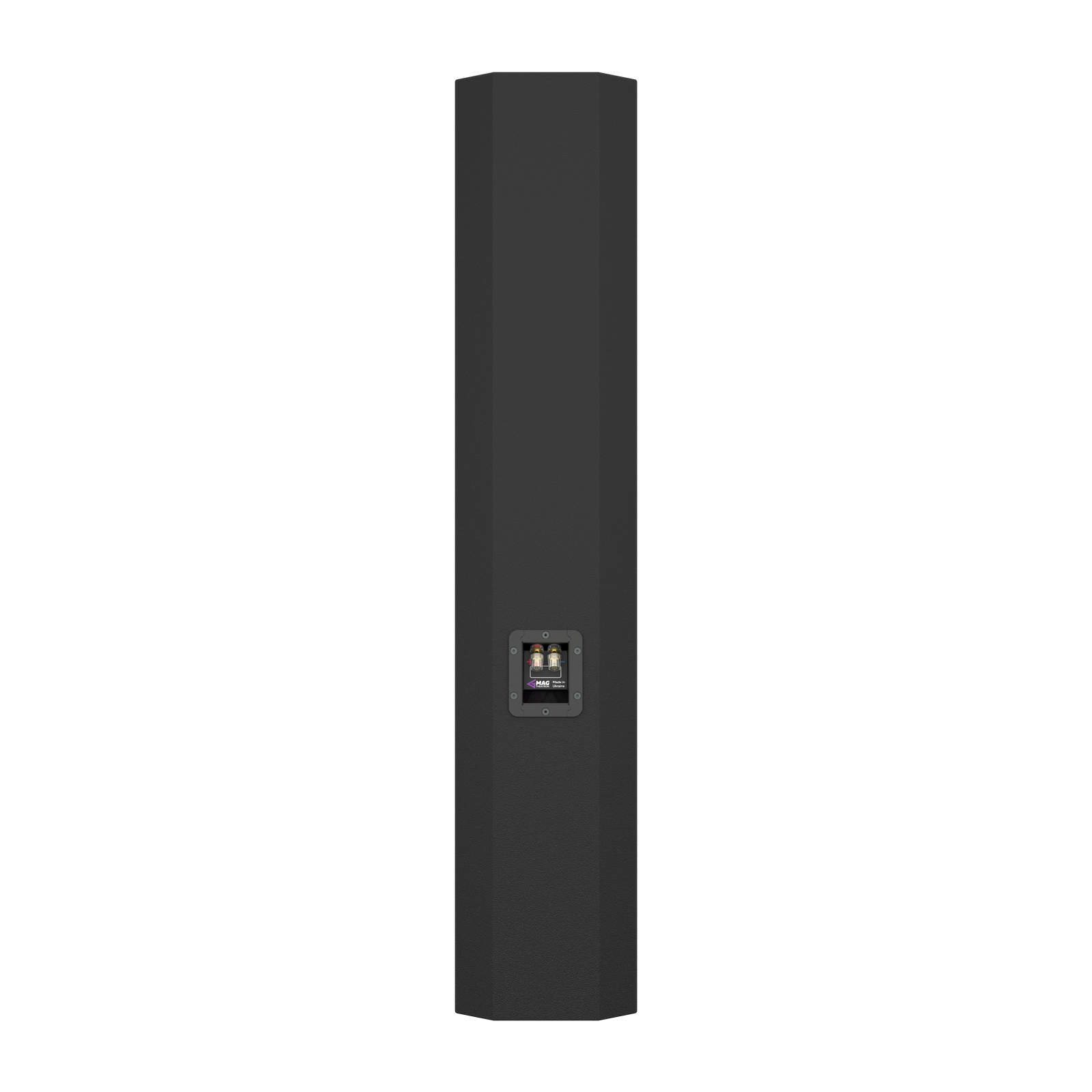

MountingU-Bracket

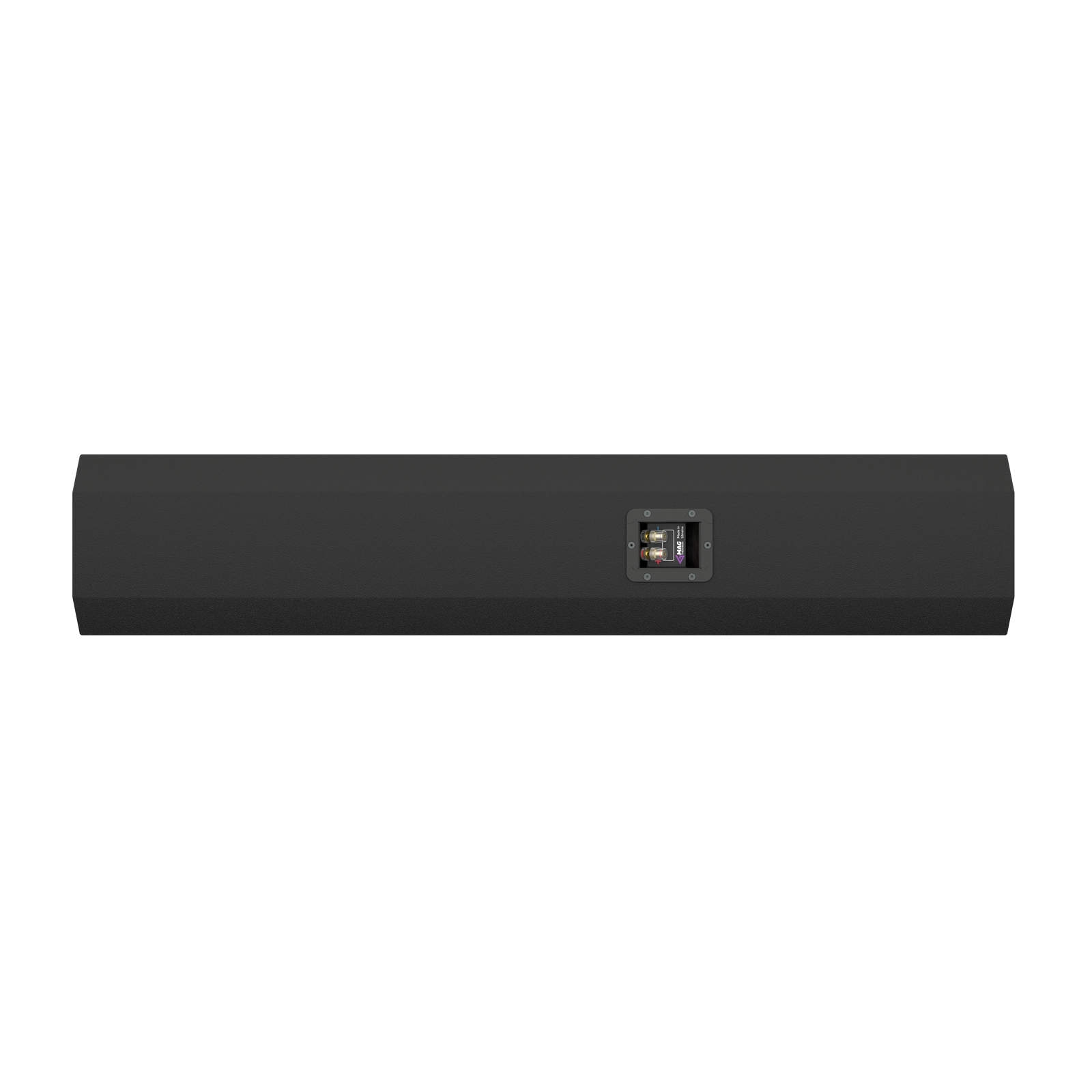

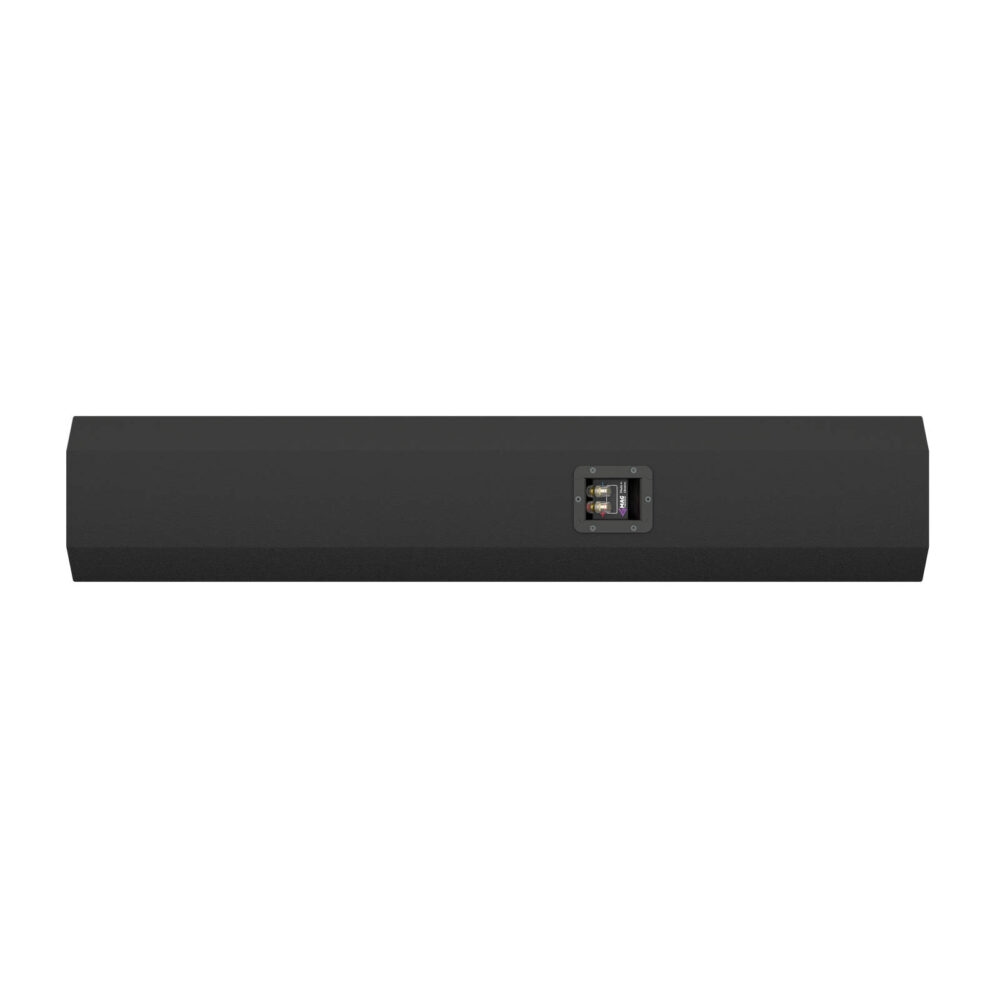

ConnectorsBanana terminal

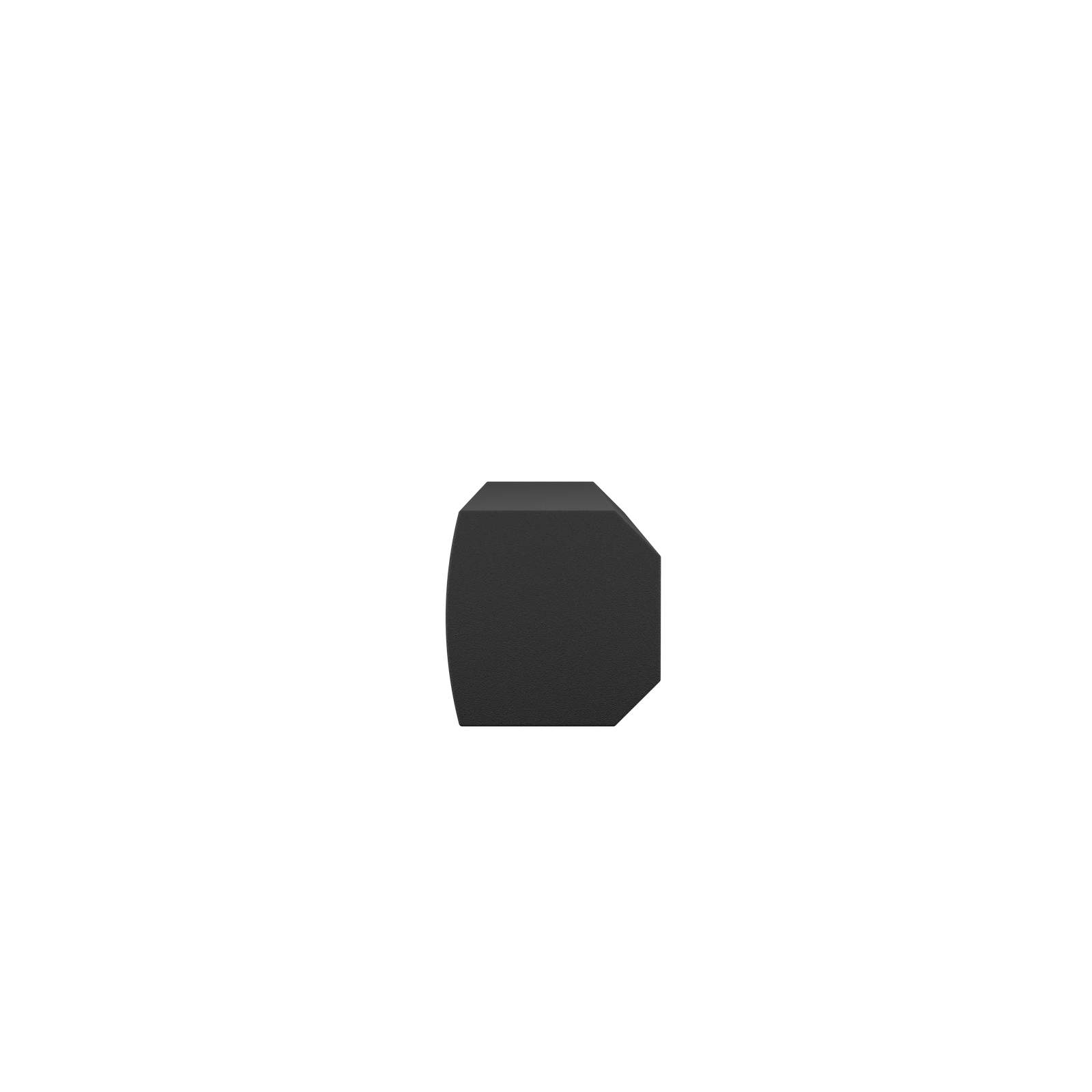

Dimension (W x H xD), mm1010 x 195 х 196
Net weight, kg12
