MAG Theatron DBA21

Double Bass Array

DBA21 is a speaker specially created for double bass array setup for unprecedented home cinema sound performance.



  • Components: 21″
  • Frequency range: 20 – 300 Hz
  • Max continuous SPL: 127 dB
  • Power rating: 1000 W

DBA21 is a speaker specifically designed for a double bass array setup for home cinema, delivering unprecedented sound performance. A tailored 21-inch woofer features low distortion and outstanding sensitivity, bringing the immersive effect to the next level.

These subwoofers were created exclusively for the Double Bass Array home cinema setup to deliver unprecedented immersion and smooth frequency throughout the entire listening area.

Double Bass Array involves using a subwoofer on the front and the back wall of the room, and actively eliminating standing waves. This allows for delivering an even frequency response to the listener.

DBA subwoofers are made using the sealed-box architecture. This provides for smooth bottom-end roll-off for the most pleasant and natural listening experience.

Reference Sound Levels for MAG Theatron Subwoofers:

115 dB — Professional-grade sound for an unparalleled audio experience
112 dB — A slightly lower but still considerable level, perfect for high-quality audio enjoyment
109 dB — An excellent level for most home entertainment setups, ensuring clear & enjoyable sound

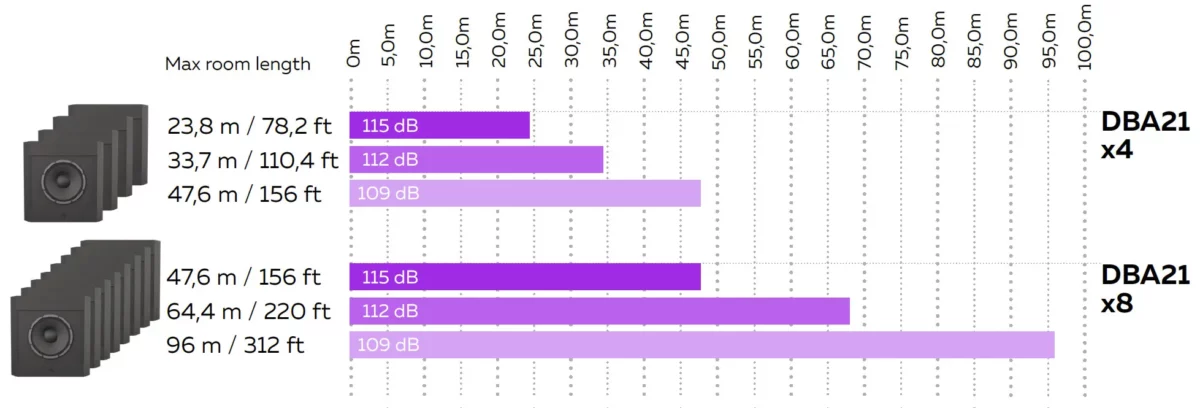

Room length chart:MAG Theatron DBA21 – room length chart

Frequency response (±3 dB), Hz25 – 150
Frequency range (–10 dB), Hz20 – 300
Max continuous SPL, dB127
Sensitivity (1W/1m, half-space), dB97
Low-frequency woofer21-inch (4,5-inch voice coil) ridged glass-fiber reinforced enclosure
Nominal impedance, Ohm4
Power rating, W1000
MountingAntishock wall mounting adapters
4 x M5 points for floor mounting
ConnectorsBanana terminals
Dimension (W x H x D), mm1000 x 1000 х 395
Net weight, kg56
