MAG Theatron S4

Ultra-Compact Surround Speaker

A new dimension of compactness and sound precision is made available with S4 – the ultra-compact speaker for small to medium-sized home cinemas.



  • Components: 4″/1″
  • Frequency range: 80 – 21000 Hz
  • Max continuous SPL: 105 dB
  • Power rating: 50 W
Overview
Technical Data
Downloads
Accessories
Applications

Don’t be misled by the size – the 4” woofer with long excursion rubber surround is capable of delivering convincing sound pressure even at the very bottom of the speaker's frequency range. The optional fabric magnet-held grill is available for exterior customization, as well as brackets for wall or in-wall installation scenarios.

Reference Sound Levels for MAG Theatron Speakers:

105 dB — Professional-grade sound for an unparalleled audio experience
102 dB — A slightly lower but still considerable level, perfect for high-quality audio enjoyment
99 dB — An excellent level for most home entertainment setups, ensuring clear & enjoyable sound

Room length chart:

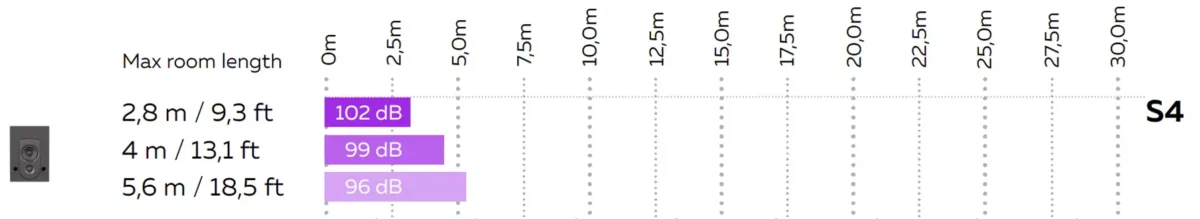

Surrounds (Side wall)
MAG Theatron M8 – room length chart for side wall surrounds

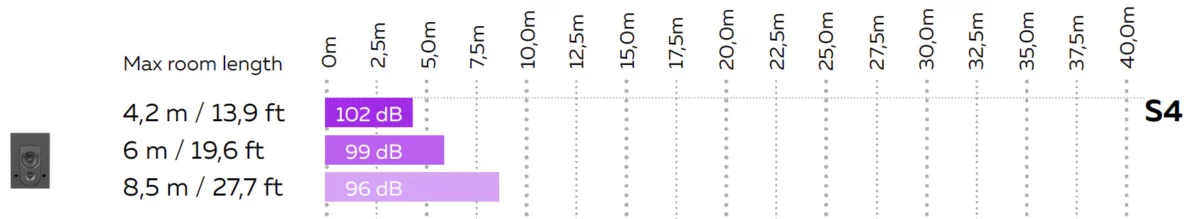

Surrounds (Rear wall)
MAG Theatron M8 – room length chart for back wall surrounds

Frequency response (±3 dB), Hz100 – 20000
Frequency range (-10 dB), Hz80 – 21000
Max continuous SPL, dB**105
Sensitivity (1W/1m, half-space), dB*88
High-frequency driver1” carbon fiber diaphragm, 1” voice coil neodymium magnetic system
Low/Mid frequency woofer4” long excursion rubber surround, 1” VC
Nominal impedance, Ohm8
Power rating, W***50
ConnectorsBanana terminals
Dimension (W x H x D), mm225 x 320 х 83 (w/ grill)
225 x 320 х 70 (w/o grill)
Net weight, kg3,6

* dB SPL, IEC 60268-5 pink noise, 1W / 1m, half- and free-space
** dB SPL RMS, IEC 60268-5 pink noise, measured on nominal power
*** 2-hour power test, IEC filtered noise, 6 dB crest factor
