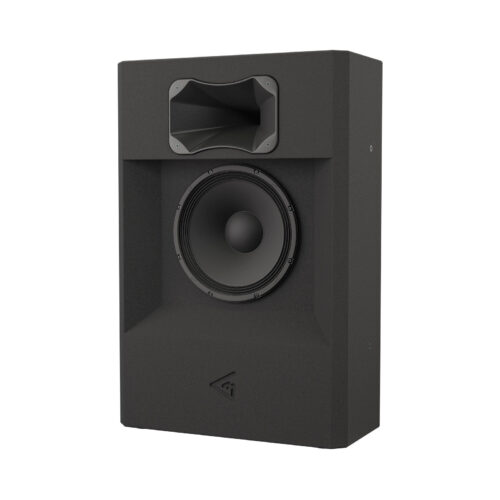

MAG Theatron M15-R

Right Main Speaker

M15-C is a 3-way right speaker for MAG Theatron PERFORMANCE main screen array. It iis based on a long-excursion 15-inch woofer, a dedicated MF 6.5-inch driver, and an HF driver.



  • Components: 15″/6,5″/1″
  • Frequency range: 35 – 22000 Hz
  • Max continuous SPL: 126,5 dB
  • Power rating: 700 W
Overview
Technical Data
Downloads
Accessories
Applications

The M15 series represents a whole new way to deliver sound into a home theater. Versions designed for left, right, and center channels have the optimal coverage to put the sound right where it belongs.

M15-L and M15-R have their sound axis panned to the left and right respectively, allowing to aim the sound right to the listening position without rotating the speaker.

Every M15 system is based on a long-excursion 15-inch woofer, a dedicated MF 6.5-inch driver for superb speech clarity, and a 1" HF driver with extremely low distortion. With horn coverage being horizontally symmetrical, M15-R is matched perfectly with M15-C and M15-L.

Frequency response (±3 dB), Hz 38 – 20000
Frequency range (-10 dB), Hz 35 – 22000
Max continuous SPL, dB 126,5
Sensitivity (1W/1m, half-space), dB 98
High-frequency driver 1-inch (1,75-inch voice coil) titanium dome
Mid-range driver 6,5-inch, (1,75-inch voice coil) horn-loaded
Low-frequency woofer 15-inch (4-inch voice coil)
Coverage 90° H x 40° V Coverage Control HF horn horizontal axis panned 15° right
Nominal impedance, Ohm 4
Power rating, W 700
Connectors Banana terminal
Dimension (W x H x D), mm 600 x 1205 х 305
Net weight, kg 45,6
